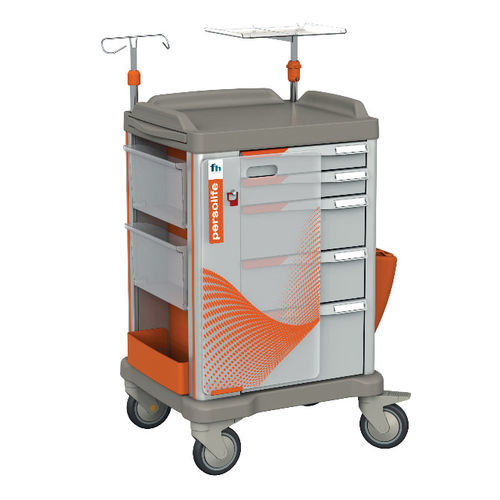

Structure made of extruded anodized aluminium angulars and lateral and back walls in moulded orange plastic.
Frontal place for drawers, 9 modules space.
Drawers 417x470 mm in injection moulded ABS plastic; frontal full-width handle complete with wide label holder and coloured ID tag (available in 9 colours: red, green, yellow, blue, violet, grey, orange, pink and white)
Drawers on mauve plastic frame sliding on ball-bearing rails, full-extended with self-closing system; load capacity 45 kg each drawer.
Central lock for all drawers with the innovative “safety lock” system and numeric disposable breakable red plastic seal – 100 pcs included.
Worktop in ABS plastic, with three sides rim h. 48 mm and frontal anti-drop small rim.
Ergonomic push-handle on three sides with rounded edges
Lateral extendable working surface in ABS plastic.
>> Cardiac board, if requested - frontal, lateral or under the worktop: depending on model
- 2 transparent plastic tilt-out bins, opening 30°, removable for cleaning operations
- shelf for vacuum pump, deep adjustable
>> flat, suitable for accessories and accessories rails
>> with waste basket, removable internal bin , capacity ca. 10 liters
Back side with built-in:
- catheters/probes holder and accessories storage space (both with double opening for multiple lengths and removable front plate for easy cleaning);
- oxygen tank holder with holding straps, 3 to 7 liters capacity.
Base in moulded ABS with powder coated steel frame, all around bumpers
4 wheels Ø 150 mm, swivelling, non marking, anti thread with double ball-bearing, 2 antistatic and 2 with brakes.
Dim.: 662x594x1050 H mm
load capacity: 300 kg
