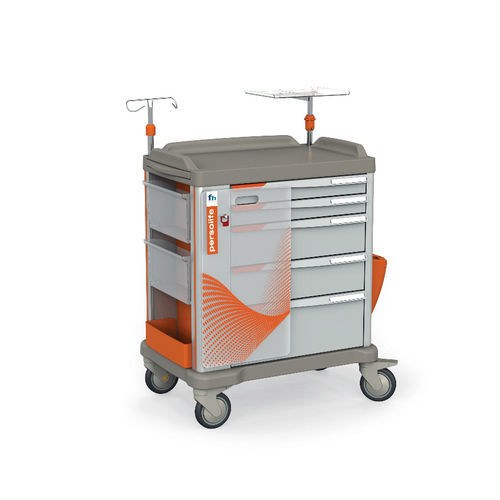

Structure with extruded anodized aluminium angulars and lateral and back walls in moulded orange plastic.
Frontal place for drawers, 9 modules space.
Drawers 610x470 mm in ABS plastic; frontal full-width handle with label holder and coloured ID tag (9 colours: red, green, yellow, blue, violet, grey, orange, pink and white)
Drawers on mauve plastic frame sliding on ball-bearing rails, full-extended with self-closing system; load capacity 45 kg each.
Central lock for all drawers with innovative “safety lock” system and numeric disposable breakable red plastic seal (100 pcs included).
Worktop in ABS, rim on 3 sides h. 48 mm and frontal anti-drop rim.
Ergonomic push-handle on 3 sides with rounded edges
Lateral extendable working surface in ABS.
> Cardiac board, if requested - frontal, lateral or under the worktop (depending on model)
- 2 transparent tilt-out bins, opening 30°, removable for cleaning
- shelf for vacuum pump, depth adjustable
> flat, suitable for accessories and rails
> with waste basket, removable internal bin, capacity ca. 10 L
Back side with built-in:
- catheters/probes holder and accessories storage space (both with double opening for multiple lengths and removable front plate for easy cleaning);
- oxygen tank compartment with holding straps, from 3 to 7 liters.
- storage space for sharp containers, bottles, with fixing straps
- accessories storage space
Base in ABS reinforced with a powder coated steel frame, with all around bumpers
4 wheels Ø 150 mm, swivelling, non marking, anti thread with double ball-bearing, 2 antistatic and 2 with brakes.
Dim.: 855x594x1050 H mm
Cart load capacity: 300 kg
