>> ATTENTION: CARDIAC BOARD AVAILABLE ON LEFT SIDE ONLY!
>> No lateral extendable working surface

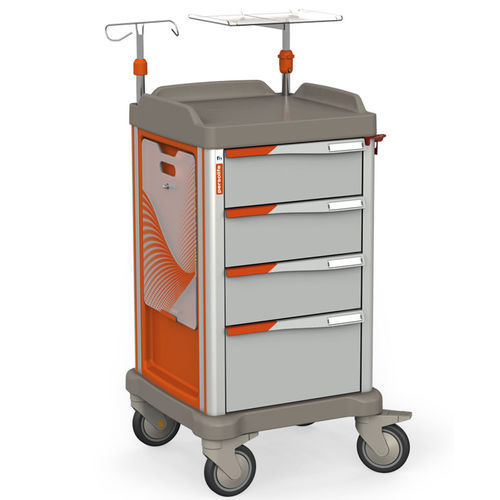

Structure with extruded anodized aluminium angulars, walls in orange moulded plastic.
Frontal place for drawers, 9 modules.
Drawers 417x470 mm in moulded ABS; frontal full-width handle complete with label holder and coloured ID tag (available in 9 colours: red, green, yellow, blue, violet, grey, orange, pink and white).
Drawers on mauve plastic frame sliding on ball-bearing rails, fully extendable with self-closing system; load capacity 45 kg each.
Central locking for all drawers with “safety lock” system and numeric disposable breakable red plastic seal (100 pcs included).
Worktop in ABS, rim on three sides h. 48 mm and frontal anti-drop small rim.
Ergonomic push-handle on three sides with rounded edges
IV pole entirely in stainless steel AISI304, 2 hooks, height adjustable.
Defibrillator plate in stainless steel AISI304, 360° swivel, adjustable size, with methacrylate adjustable plate (from 360 to 440 x 280 mm), with fixing straps.
Left side: cardiac board - space for accessories and rails
Right side: flat, suitable for accessories and rails
Back side with built-in:
- catheters/probes holder and accessories storage space (both with double opening for multiple lengths and removable front plate for easy cleaning);
- oxygen tank compartment with holding straps, from 3 to 7 liters.
Base in moulded ABS plastic reinforced with a powder coated steel frame, with all around bumpers
4 wheels Ø 150 mm, swivelling, non marking, anti thread with double ball-bearing, 2 antistatic and 2 with brakes.
Dim.: 571x594x1050 H mm
Cart load capacity: 300 kg
