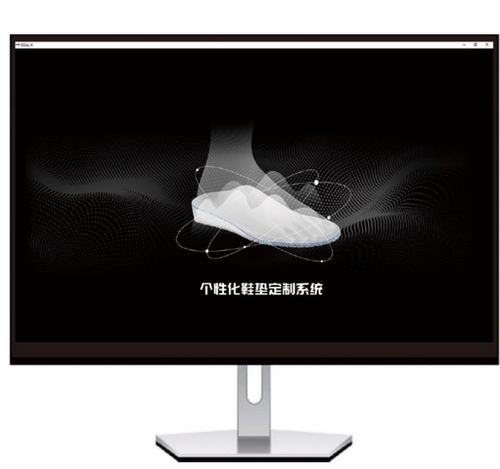

Orthopedic insole design software Ideal-X

CADmanufacturingprinting

Product overview
The Ideal-X Insole CAD design system delivers a fast, standardized workflow for custom insole design and production oriented to clinical and small-scale manufacturing environments.
It integrates 3D-print export and a multilingual interface to streamline collaboration between clinicians and production teams.

Key features

• 3D printing workflow for direct print output
• Multi-design modules for varied orthotic types
• Complete a pair of insole designs in under 5 minutes
• Multilingual operating interface for international teams
• One-click export to print-ready files; no secondary mold design required
• Designs comply with national insole standard QB T5191-2017

Technical specifications

• Model: Ideal-X
• Operating system: Windows 10
• PC configuration: Moderate configuration
• Internal memory: 8 GB
• Storage: 138 MB
• Internet requirement: Broadband internet connection
• Processor: 15-9600
• Graphics card: 1050 4G
• Display: Full-screen, resolution 1920 x 1080

Compliance and applications

• Compliant with QB T5191-2017 for insole design
• Intended for podiatry clinics, orthotics labs and footwear manufacturers
• Suitable for rapid prototyping and small-batch production using 3D printing
