Orthopedic insole manufacturing CAD/CAM system Truth-2X

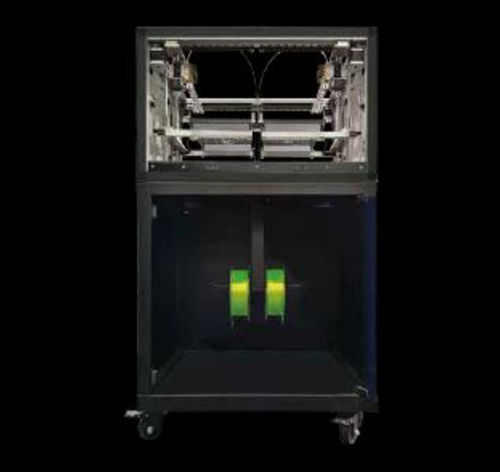

Orthopedic insole manufacturing CAD/CAM system - Truth-2X - GenSci Group
Orthopedic insole manufacturing CAD/CAM system - Truth-2X - GenSci Group
Add to favorites
Compare this product

Characteristics

Applications
for orthopedic insole manufacturing

Description

Product overview
  • Purpose: Industrial 3D printing system for producing insoles and footwear components.
  • Model: Insole CAD Design System-02 (available in configurations such as Truth-2X and Truth-X).
  • Single platform print size (example): 200×300×200 mm (Truth-2X); larger platform options available on other models.


Key features
  • Dual-color or two-material printing capability (depends on model)
  • Short-distance extrusion design for controlled filament feed
  • Automatic leveling with manual option
  • Mobile cabinet with four universal wheels (movable and lockable)


Technical specifications
  • Equipment model: Truth-2X | Truth-X
  • Molding principle: FDM
  • Nozzle specifications: 0.4 / 0.6 / 0.8 / 1 mm
  • Material channels: 1 (Truth-2X) | 2 (Truth-X)
  • Positioning precision: X 0.11 mm; Y 0.11 mm; Z 0.025 mm
  • Melting/drawing temperature: 175–260 °C
  • Compatible filaments: TPU, TPE, PLA, ABS, etc.
  • Leveling method: Automatic (can be manual)
  • Temperature control: Air-cooled dissipation with thermistor control
  • Platform temperature range: 0–100 °C
  • Machine dimensions: 710×500×1230 mm (Truth-2X) | 730×800×1230 mm (Truth-X)
  • Print size (single platform): 200×300×200 mm (Truth-2X) | 600×600×200 mm (Truth-X)
  • Power input: AC100–220V 50/60Hz
  • Power output: 350 W
  • Filament diameter: 1.75 ±0.08 mm
  • Slicing software: BasingLead-3D
  • Feeding method: Short-range continuous feeding
  • Forming speed: 40 min/pair (size 40.5)
  • Printing speed: up to 140 mm/s
  • Machine weight: 50 kg (Truth-2X) | 60 kg (Truth-X)
  • Certificates: CE, ROHS


Applications
  • On-demand production of custom insoles and orthotic prototypes
  • Small-batch manufacturing for footwear development and testing
  • Two-material or two-color insole production for functional layers


Compliance & support
  • Safety and environmental certificates: CE, ROHS
  • Included software and compatibility: BasingLead-3D slicing software
  • Environmental requirements: none specified for operation
