Orthopedic insole manufacturing CAD/CAM system Practice-X

for orthotics

Product overview

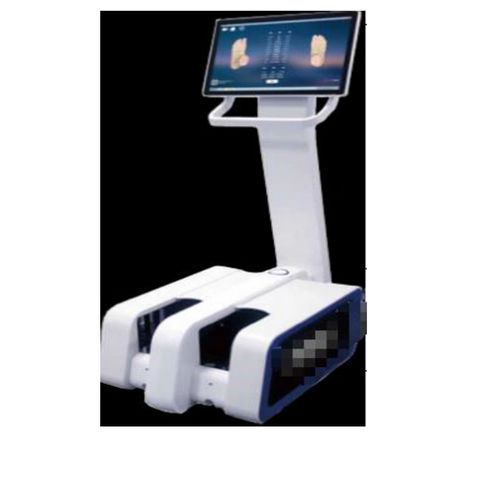

Insole CAD Design System-03 is a non-contact laser foot scanning solution combined with insole CAD software. It captures precise 3D foot geometry for orthotics design and footwear production, and exports STL and other CAD formats ready for analysis or direct 3D printing.

Key features

• Single foot scan <10 s (Practice-X)
• Both feet scan <20 s (Practice-2X)
• Standard error / tolerance ±0.5 mm
• Automatically extracts >60 foot parameters
• STL output suitable for direct 3D printing
• Non-contact laser scanning (Laser Class 2M, eye-safe)

Technical specifications

• Product name: Insole CAD Design System-03
• Models/variants: Practice-X; Practice-2X
• Scanning method: Non-contact laser scanning (Laser Class 2M, harmless to body and eyes)
• Scan range (X×Y×Z): 320×130×100 mm (Practice-X); 350×130×100 mm (Practice-2X)
• Tolerance / standard error: ±0.5 mm
• Scan time: <10 s (single foot, Practice-X); <20 s (both feet, Practice-2X)
• Machine dimensions (L×W×H): 570×330×218 mm (Practice-X); 660×563×316 mm (Practice-2X)
• Software: GenSci V2.1 (Practice-X); GenSci V3.0 (Practice-2X)
• Output formats: ASC, STL, OBJ, EASYLAST, SHOE MASTER, etc.
• Operating system: WIN7/10 64-bit (Practice-X); WIN10 64-bit (Practice-2X)
• Power: AC220V; recommended self-provided 500W UPS
• Power rating: 240W

Applications

• Orthotics and prosthetics laboratories
• Custom insole and footwear manufacturers
• Podiatry clinics and gait analysis centers
• R&D and quality control for shoe design
