Surgical laser Gbox

diodetabletop

Overview

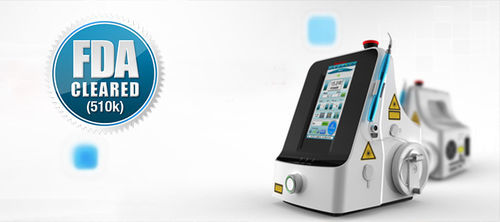

The new Gbox portable surgery diode laser system is a compact, portable mini surgery laser designed for a wide range of clinical applications. It features multiple selectable wavelengths, supports continuous and pulsed modes, and can be used with contact or non-contact handpieces.

Main capabilities

• Wavelength options: 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm, 1940nm
• Modes: continuous and pulsed operation
• Handpiece options: contact and non-contact handpieces; variety of handpieces for ENT, lipolysis, etc.
• Accessories: flexible fiber, handpieces with various shapes and lengths, fiber holders (2 kinds), micro-endoscope, full accessories for clinic
• Output control: output power calibration at the end of fibers, built-in power meter that can test the power in software
• Pulsation: up to 20 KHz top-pulsation for quick and tissue-protecting performance

Design & user interface
Miniature portable body case designed for easy transport and on-site surgery. User-friendly interface with advanced software and presetting protocols that can be renamed, customized and saved by the operator. Adjustable aiming (pilot) light, background light and sound settings.

Key product features (from Gbox Features)

• User-friendly interface: advanced software with presetting protocols manually customizable by operator (rename protocols, change parameters, save)
• Output power calibration at the end of fibers; adjustable aiming beam (pilot light), background light and sound; built-in power meter; 20 KHz top-pulsation
• High quality and reliability; 8-inch touch screen display; highly integrated and modular design; new internal design for easier, lower-cost maintenance; full accessories for clinic
• Reliable after-sale service and training for distributors

Applications
Designed and used for dentistry, endovenous laser treatment (EVLT), ENT, PLDD, liposuction (lipolysis), DEEP Tissue Therapy, veterinary applications and other surgical and aesthetic specialties.

Packaging & portability
Compact portable unit shipped in a metal carry case with coded lock for easy moving. Fiber length options include 3-meter fibers; fiber holders facilitate cleaning and convenient use. Fibers/consumables designed for reuse/sterilization where applicable.

Regulatory note
Manufacturer states systems have FDA approval for applicable devices/variants.

caractéristiques / spécifications techniques

• Series / model family: Gbox
• Available wavelengths: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm
• Maximum/peak output power: up to 30 W
• Operating modes: continuous and pulsed
• Pulsation rate: up to 20 kHz top-pulsation
• Handpiece types: contact and non-contact; multiple handpieces for ENT, lipolysis, etc.
• Fiber length: typical offering 3 m fibers
• Display: 8-inch touch screen
• Dimensions (unit): 245 mm (L) × 215 mm (W) × 315 mm (H)
• Weight: approx. 5 kg (portable)
• Calibration & measurement: built-in power meter; output power calibration at fiber end
• Design: highly integrated, modular for easier maintenance; metal portable carry case with coded lock
• Typical accessories: fiber holders (2 kinds), flexible fiber, handpieces of various shapes/lengths, micro-endoscope, full clinical accessories
• Typical clinical applications: dentistry, EVLT, ENT, PLDD, lipolysis, deep tissue therapy, veterinary
