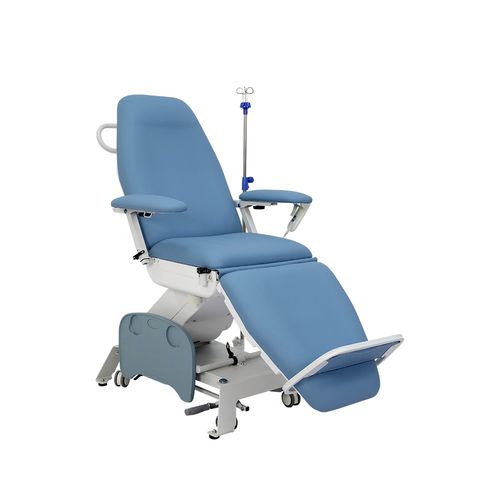

Electric hemodialysis chair DP-YS245

3-sectionheight-adjustableTrendelenburg

Product overview
Electric hemodialysis chair designed for dialysis, IV infusion and blood donation. Suitable for hospitals, clinics and dialysis centers where adjustable positioning and patient comfort during procedures are required.

Key features

• Four-motor electrical control with CE-approved motors for independent adjustment of height, backrest, seat and legrest.
• Stable metal frame engineered for clinical use.
• Extendable leg rest to accommodate varying patient leg lengths.
• Supports Trendelenburg position for clinical procedures.

Load capacities

• Seat maximum load: 200 kg
• Backrest maximum load: 100 kg
• Legrest maximum load: 50 kg

Dimensions & adjustments

• Product dimension (listed): 186 × 55 × 58–85 cm
• Alternate listing: 190 (L) × 55–84.1 (W) × 61–84 (H) cm
• Height adjustment: 61–84 cm
• Backrest tilt: 0°–71°
• Seat tilt: 0°–13°
• Leg tilt: 0°–43°

Gallery
Multiple images in the product gallery show different views and configurations, including reclined, Trendelenburg and transport positions.

Technical specifications

• Model: DP-YS245
• Application: hemodialysis chair; also suitable for IV infusion and blood donation
• Adjustment type: electrical (four motors)
• Motor certification: CE-approved motors
• Frame: stable metal frame
• Leg rest: extendable
• Trendelenburg: supported
• Dimensions: 186 × 55 × 58–85 cm (alternate: 190 L × 55–84.1 W × 61–84 H cm)
• Height adjustment range: 61–84 cm
• Backrest tilt range: 0°–71°
• Seat tilt range: 0°–13°
• Leg tilt range: 0°–43°
• Maximum loads: seat 200 kg; backrest 100 kg; legrest 50 kg
