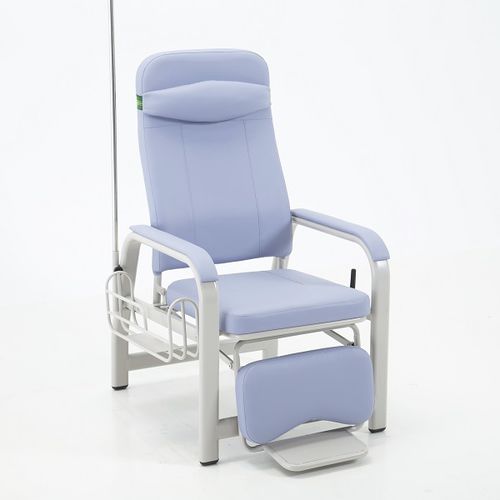

Manual hemodialysis chair KFM-SY11

not specified3-sectionnot specified

Overview

• Simple infusion/dialysis chair designed for outpatient and clinical use; includes footrest pad and integrated infusion pole.

Materials

• Armrests and footrest: egg-shaped steel tubes, bent and welded.
• Backrest inner tube: bent and welded steel tube.
• Connecting crossbeam: square steel tubes.
• Frame surface: polished, degreased, derusted, neutralized, cleaned, phosphated and electrostatically sprayed for durable finish and easy cleaning.
• Infusion pole: stainless steel tube.
• Seat cushion: internal steel frame, plywood board, high-resilience sponge and leather upholstery secured with nails to limit deformation and ensure long-lasting comfort.
• Armrests: leather-wrapped padded armrests on both sides.

Functionality & Features

• Adjustable reclining backrest; reclining angle approximately 130–140° for semi-supine positioning.
• Includes front footrest pad for patient comfort.
• Intended for infusion, blood donation and dialysis procedures (also referred to as infusion chair, blood donation chair, medical chair, blood drawing chair).

Dimensions
Overall (W×D×H): 71 cm × 113 cm × 110 cm
Lying (W×D×H): 71 cm × 163 cm × 83 cm
Lying angle: approx. 140°
Seat height from floor: 430 mm
Back height from floor: 1100 mm
Lateral width: 1130 mm ±3 mm

Technical specifications

• Model: KFM-SY11
• Frame material: Steel (polished, phosphated, electrostatically sprayed)
• Infusion pole: Stainless steel tube
• Seat construction: Steel frame + plywood board + high-resilience sponge + leather upholstery with nails
• Armrests: Leather-wrapped padded armrests
• Footrest: Yes (pad)
• Adjustable backrest reclining angle: ~130–140°
• Overall dimensions (W×D×H): 710 × 1130 × 1100 mm
• Lying dimensions (W×D×H): 710 × 1630 × 830 mm
• Seat height: 430 mm
• Back height: 1100 mm
• Lateral width tolerance: ±3 mm
