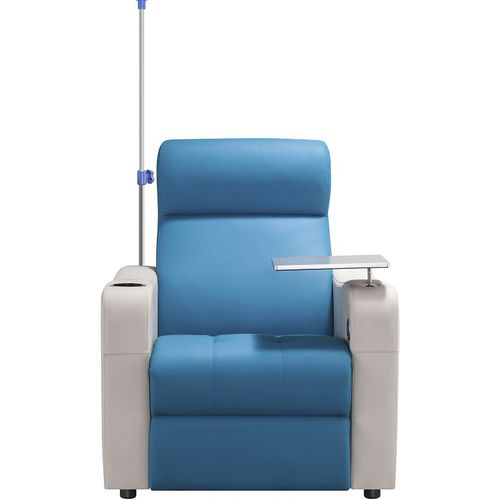

Electric hemodialysis chair KFM-SF02

3-sectionrecliningdialysis

Overview
Clinical recliner chair designed for dialysis treatments, model KFM-SF02. Intended for outpatient and in-center dialysis units where patient comfort, infection-control friendly finishes and configurable clinical accessories are required.

External structure
The leading edge of the armrest features a high-grade plastic cup cover with a matte black finish: corrosion-resistant, anti-oxidation and easy to clean. Upholstery color is selectable; top-grade technological leather is used and treated for insect resistance, mildew resistance, breathability and neutral odor. Seat net width: 580 mm. The chair includes a four-hook infusion pole that is retractable, height-adjustable and removable for cleaning or replacement.

Internal structure
The frame is solid wood processed through controlled drying, anti-mildew treatment, insecticide application and disinfection to ensure dimensional stability and hygiene compatibility with clinical environments.

Internal skeleton
An integrated linkage skeleton is used; surfaces receive phosphating anti-rust treatment followed by electrostatic spray coating to enhance corrosion and impact resistance. Internal filling consists of high-density foam evenly supported by S-shaped springs to ensure consistent support and durability. Design priorities: structural firmness, longevity, patient safety and reliability.

Optional configuration

• Electric adjustment function
• Manual adjustment function
• Cup holder
• Infusion pole
• USB charging port
• Writing/tray board
• Wooden armrest surface

Specifications
87 cm (L) * -86–160 cm (W) * 105 cm (H)
Seat width: 59 cm
Includes infusion pole

Technical specifications

• Model: KFM-SF02
• Dimensions: 87 cm (L) * -86–160 cm (W) * 105 cm (H)
• Seat width (listed): 59 cm
• Seat net width (listed): 580 mm
• Armrest: high-grade plastic cup cover, matte black, corrosion-resistant, anti-oxidation, easy to clean
• Upholstery: selectable leather colors; technological leather fabric, insect-proof, mildew-proof, breathable, odor-free
• Infusion pole: four-hook, retractable, adjustable, removable
• Frame: solid wood with drying, anti-mildew, insecticide and disinfection treatments
• Skeleton: integrated linkage skeleton with phosphating anti-rust treatment and electrostatic spray finish
• Filling: high-density foam with S-shaped spring support
• Design focus: firmness, durability, safety and reliability
• Optional features: electric/manual adjustment, cup holder, USB charging, writing board, wooden armrest surface
