1-section tilt table A1mini

pediatricelectrictherapy

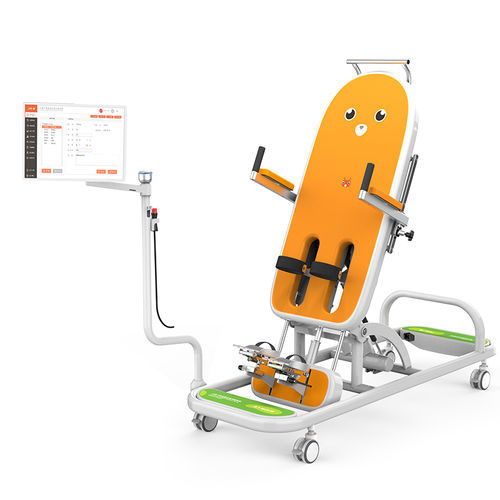

The A1mini is a pediatric robotic tilt table with a cartoon design, developed for rehabilitation of children with lower-limb motor impairments. It simulates the physiological gait cycle and delivers configurable training modes to support restoration of correct gait patterns according to neuroplasticity principles.

Key features

• Laptop-based control panel with a simple, intuitive UI for therapists to set training parameters and monitor sessions.
• Customizable parameter presets by patient profile (age, height, weight, health): stride, step frequency, treatment time, spasm sensitivity.
• Independent range-of-motion adjustment for each leg and separate spasm-monitoring sensitivity per leg.
• Multiple training modes: passive, active and assisted to match rehabilitation stages.
• Built-in emergency stop button for immediate shutdown in case of patient discomfort.

Clinical benefits

• Supports posture maintenance and improves lower-limb function while promoting peripheral circulation.
• Enhances organ metabolism and cardiopulmonary function through controlled gait stimulation.
• Facilitates nervous system regulation and neuroplasticity, improving excitability, flexibility and coordination.

Technical specifications

• Model: A1mini
• Tilt angle: 0-80°
• Step angle: 0-25°
• Step speed: 1-80 steps/min
• Leg adjustment (range): 0-15 cm
• Treatment time: 1-90 min
• Voltage: 220 V AC, 50 Hz
• Power: 500 VA
• Safety: emergency stop button
• Training modes: passive, active, assisted
• Control: laptop-based UI for parameter setting and monitoring
