Rehabilitation treatment table PTM2

adultmanuallifting

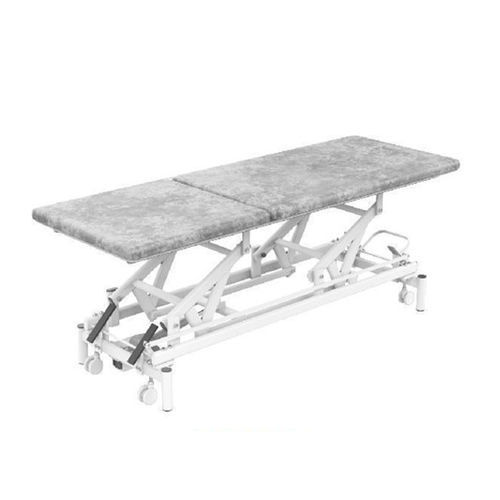

The PTM2 is an electric hospital elevating medical treatment bed designed for rehabilitation and treatment, featuring an adjustable liftable bed body and a movable mattress board with hinged headrest and middle lying sections. It integrates electric lifting, emergency stop functionality and a strong under-frame lifting propulsion mechanism to ensure safe, stable operation.

Product introduction

• The electric lifting bed includes a liftable bed body and a movable mattress board set on the bed body. The headrest section and the middle lying section of the movable mattress board are hinged structures. The headrest section of the movable mattress board is positioned by imported pneumatic springs, which is safe and reliable.
• The lifting of the bed body is driven by the lifting propulsion mechanism set under the bed frame, which has a strong thrust to ensure the safe and stable operation of the bed body.

Functional features

• Designed for the rehabilitation of patients with neurological diseases, providing a large bed surface to support various rehabilitation training and treatment techniques by patients and therapists.
• Lower operating height to facilitate patient movement, balance and standing training.
• Pneumatic spring-assisted backrest provides adjustable support for lying and sitting exercises.
• Equipped with electric manual lifting and emergency stop switches to ensure safe use.

Technical specifications

• Model: PTM2
• Voltage: 220V/50Hz
• Back panel activity angle: 80° ± 5°
• Size (L×W): 2100 mm × 750 mm
• Working load: 170 kg (patient 135 kg)
• Lifting height (operating height range): 430 mm – 950 mm
• Weight: 95 kg ± 5 kg
• Emergency stop switch: Available
