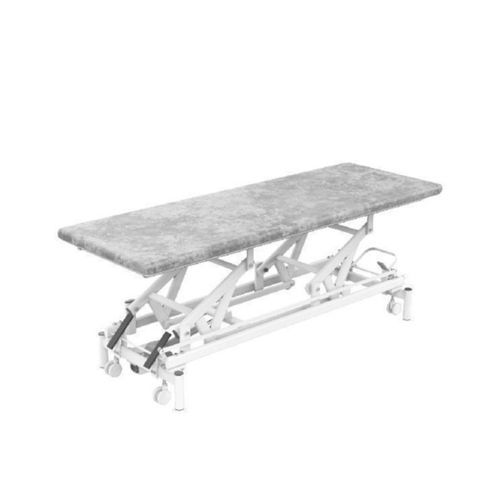

Rehabilitation treatment table PTM1

adultelectriclifting

Product overview
The PTM1 Medical Electric Treatment Bed is an electrically adjustable rehabilitation bed for neurological patient therapy, offering a large treatment surface and a low operating height to facilitate movement, balance and standing training.

Design and operation
The bed comprises a liftable bed body and a movable mattress board mounted on the bed body. The headrest and the middle lying section of the mattress board are hinged; the headrest is supported by imported pneumatic springs to enable controlled positioning. The bed body is lifted by a propulsion mechanism located under the frame, providing stable thrust for reliable vertical adjustment.

Functional features

• Intended for rehabilitation of patients with neurological conditions; wide surface area (2100 × 750 mm) allows therapists and patients to perform diverse rehabilitation exercises and treatment techniques.
• Low operating height range (430 mm–950 mm) supports movement training, balance exercises and assisted standing activities.
• Pneumatic spring-assisted backrest adjustable from flat to 85° to support lying-to-sitting transitions and seated exercises.
• Equipped with electric lifting controls and emergency stop switch for safe operation.

Technical specifications

• Model: PTM1
• Voltage: 220V/50Hz
• Size: 2100 mm × 750 mm
• Lifting height: 430 mm–950 mm
• Working Load: 170 kg (Patient 135 kg)
• Weight: 88 kg ± 5 kg
• Emergency Stop Switch: Available
