Rehabilitation treatment table PT1

adultpneumaticlifting

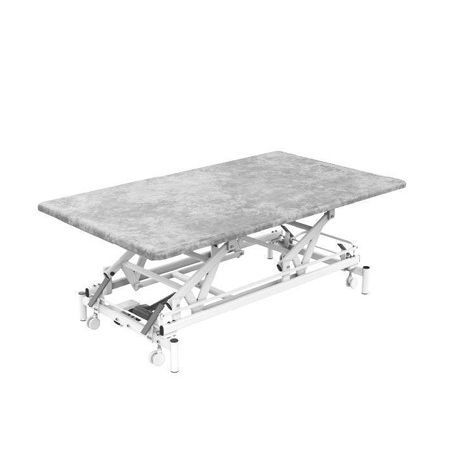

The PT1 is an electrically driven lift bed equipped with a LINAK motor, intended for home care and medical rehabilitation, particularly for patients with neurological conditions. It offers adjustable height, a pneumatic-assisted backrest and integrated safety controls to support therapeutic training and safe patient handling.

Product overview
The bed comprises a liftable frame and a movable mattress board assembled on the frame. The headrest section and the mid-section of the mattress board are hinged. The headrest is positioned using imported pneumatic springs for controlled adjustment. Lifting is driven by a propulsion mechanism mounted beneath the frame, providing high thrust to ensure stable and reliable operation.

Functional features

• Designed for rehabilitation of patients with neurological disorders; the large sleeping surface accommodates a variety of therapeutic exercises and treatment techniques.
• Low operating height (430–950 mm) facilitates movement training, balance and standing practice with therapists.
• Pneumatic spring-assisted backrest adjustable from horizontal up to 85° to support lying-to-sitting and seated exercises.
• Electric lift operated via a handheld control with manual override and an emergency stop switch for safe use.

Technical specifications

• Model: PT1
• Motor: LINAK
• Voltage: 220 V / 50 Hz
• Size: 2100 mm × 1200 mm
• Working load: 170 kg (recommended patient weight: 135 kg)
• Lifting height: 430 mm – 950 mm
• Weight: 115 kg ± 5 kg
• Emergency stop switch: Available
