Rehabilitation treatment table PT2

adultelectriclifting

An electric adjustable lift bed designed for hospital and homecare rehabilitation and therapy. It features a pneumatic-assisted backrest and a powerful under-frame lifting propulsion mechanism to ensure safe, stable operation.

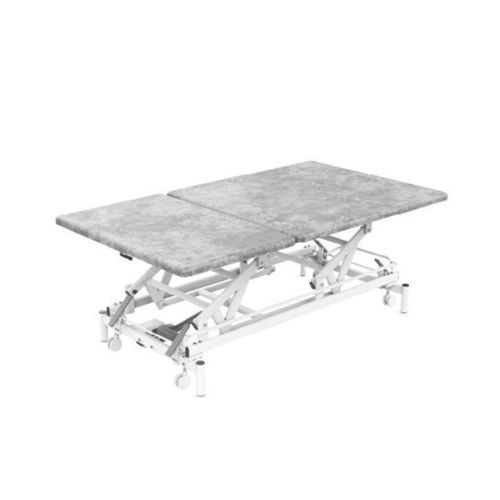

The bed comprises a liftable bed body and a movable mattress board mounted on the bed body. The headrest section and the central lying section of the mattress board are hinged. The headrest is held in position by imported pneumatic springs to provide controlled, reliable support.

Lifting of the bed body is driven by a propulsion mechanism located under the bed frame; the unit delivers strong thrust to ensure secure and stable vertical movement.

Functional features

• Designed for rehabilitation of patients with neurological conditions; large surface area accommodates patient and therapist for diverse rehabilitation exercises and treatment techniques.
• Low operating height range (430 mm–950 mm) to support transfer, balance and standing training.
• Pneumatic-spring assisted backrest adjustable from horizontal to approximately 85° to support lying and seated exercises.
• Electric and manual lifting options with an emergency stop switch for safe operation.

Technical specifications

• Model: PT2
• Voltage: 220V/50Hz
• Back panel activity angle: 80° ± 5°
• Size: 2100 mm × 1200 mm
• Working load: 170 kg (patient capacity 135 kg)
• Lifting height: 430 mm – 950 mm
• Weight: 123 kg ± 5 kg
• Emergency stop switch: available
