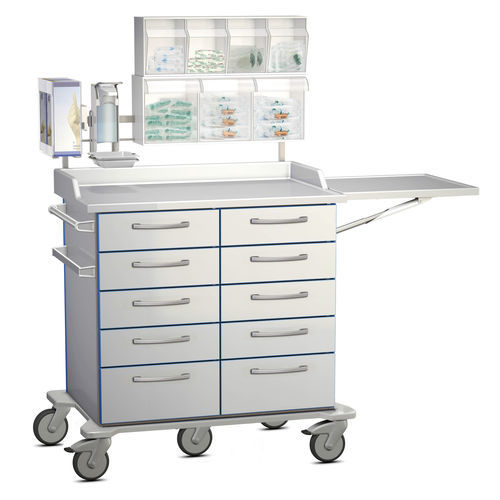

Endoscopy trolley K42 - Modell 22

for flexible endoscopesstoragewith drawer

Product overview
Endoscopy trolley K42 - Model 22 for storage and organisation of endoscopic instruments and accessories. External dimensions and internal layout accommodate equipment racks and storage modules. Foldable side worktop provides a temporary workspace.

Technical specifications

• External dimensions: 961 x 669 x 924* mm
• Partition: 11U
• Side layout: left and right, each with 4 drawers (approx. 128 mm height / 2U)
• Internal dimensions of 2U drawers: 329 x 481 x 95 mm
• One larger drawer: approx. 192 mm height (3U) — internal dimensions: 329 x 481 x 159 mm
• Side foldable worktop
• Available finishes: Light grey, Jade, Metallic Silver
• Article number: P3110R2P0004C05

Optional accessories (illustrated)

• ABS top, folded PX ABS3
• ABS top for foldable worktop TOP ABS 407455AP
• Single standard rail PX3 FS1-LOW
• Folding box combination PXZ 4SH+3SH
• Disinfectant dispenser HM 1P
• Drip tray HM 1 WANNE
• Standard rail extension PX FSV90-200-L (front use)
• Holder for 2 glove dispenser boxes HSP N2S250-T

Intended applications

• Endoscopy suites and procedure rooms
• Surgical theatres for endoscopic procedures
• Outpatient clinics and sterile storage areas
