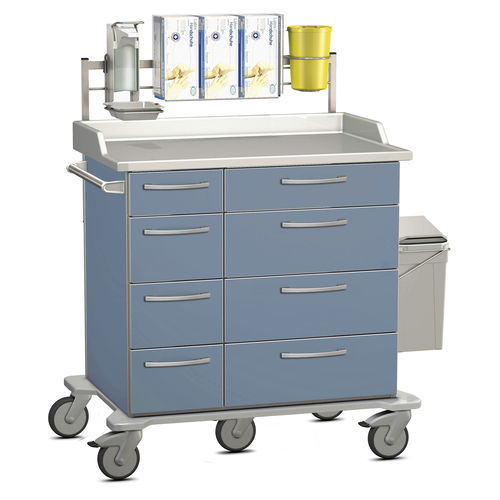

Medical trolley K42 - Modell 24

hospitaldressingpatient care

Overview
Compact medical dressing trolley designed for patient supply and wound care. Two-sided drawer configuration with an 11 HE central divider provides separated storage zones for small and large consumables.

Internal configuration

• Left side — 1 top drawer: height ~128 mm (2 HE); internal dimension top left: 204 x 481 x 95 mm
• Left side — 3 lower drawers: each height ~192 mm (3 HE); internal dimension left large drawers: 204 x 481 x 159 mm
• Right side — 1 top drawer: height ~128 mm (2 HE); internal dimension top right: 454 x 481 x 95 mm
• Right side — 3 lower drawers: each height ~192 mm (3 HE); internal dimension right large drawers: 454 x 481 x 159 mm
• Central divider: 11 HE

Optional shown accessories

• ABS top, folded PX ABS3
• Standard rail PX3 FS1-LOW
• Disinfectant dispenser HM 1P with drip tray HM 1 WANNE
• Holder for 3 glove dispenser boxes HSP N3S250-T
• Light grey 14 l waste container with lid and holder EWZ A147DL
• Sharps disposal container MB320S with rail mount
• HB NE154154130-E

Technical characteristics / specifications

• Article no.: P3110R2P0003C01
• Product name: Dressing trolley K42 - Model 24
• Series/Category: P-Series / Patient supply trolley
• External dimensions: 961 x 669 x 924* mm
• Divider: 11 HE
• Drawer layout: left top 1 x 128 mm (2 HE); left lower 3 x 192 mm (3 HE); right top 1 x 128 mm (2 HE); right lower 3 x 192 mm (3 HE)
• Drawer internal dimensions top left: 204 x 481 x 95 mm
• Drawer internal dimensions left large: 204 x 481 x 159 mm
• Drawer internal dimensions top right: 454 x 481 x 95 mm
• Drawer internal dimensions right large: 454 x 481 x 159 mm
• Available finishes: Dove blue, Metallic silver
• Displayed accessories are optional and sold separately
