Medical trolley PXF14T13C1
logisticstransportplastic

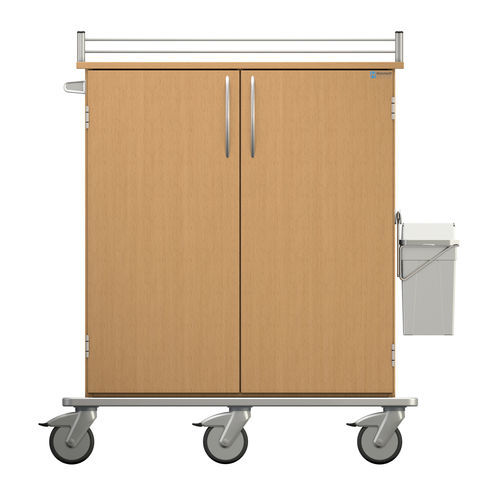

Medical trolley - PXF14T13C1 - Hammerlit - logistics / transport / plastic

Medical trolley - PXF14T13C1 - Hammerlit - logistics / transport / plastic - image - 2

Add to favorites

Compare this product

Go to the Hammerlit website for more information

Characteristics

Applications: medical
Function: logistics, transport
Material: plastic
Components: 2-door, with side bin, with hinged door
Configuration: mobile
Ergonomics: side-access

Description

Description

Product type: tray trolley, product variant Topline, designed for medical and care environments
Body and fronts: 19 mm multi-layer bonded panels
Both sides laminated with 0.7 mm HPL
2 mm PU-bonded plastic edging
Hygienic design: chassis-to-cabinet joint sealed all around; cabinet assembled without screw connections
Decor: beech light (D391PR)
Chassis: one-piece plastic (light grey) with bumper protection function

Wheels & mobility

4 swivel castors, 2 with double brake
Wheel diameter: 125 mm
Tires: thermoplastic rubber, non-marking
Wheel bearings: ball bearings; wheel housing: polyamide
5th support wheel (central) located under chassis for improved stability

Cabinet configuration (top to bottom)

1 cabinet section with two hinged doors
Door height approx. 892 mm (14 U); bow handle in stainless look
Left door with aluminium strike strip
Door retention magnets for open doors
Opening angle with/without mounted accessories approx. 180°/260°
1 middle partition (14 U)

Tray supports / interior

Left and right, each: 7 fixed tray support angles (PXZ TAL555) for Euronorm trays 370 x 530 mm
Euronorm trays sold separately

Accessories & fittings

Left end, top: 1 sliding push handle, stainless (PXSBEFGH)
Right end, mid: 1 pair multipurpose holders (PXAH) for side waste bin EWZA97DL

Technical specifications

Product variant: Topline
Panel thickness: 19 mm multi-layer bonded
Lamination: 0.7 mm HPL both sides
Edge: 2 mm PU-bonded plastic edge
Hygienic sealing at cabinet/chassis connection
Decor: beech light (D391PR)
Chassis: one-piece plastic, light grey, with bumper protection
Castors: 4 swivel (2 with double brake) + 1 central support wheel
Wheel diameter: 125 mm
Tires: thermoplastic rubber, non-marking
Wheel bearings: ball bearings; housings: polyamide
Dimensions (W x D): approx. 985 x 734 mm
Working height: approx. 1116 mm
Accessories: sliding push handle (PXSBEFGH); multipurpose holders (PXAH); tray support angles (PXZ TAL555)
Compatible with Euronorm trays 370 x 530 mm (trays not included)

Ordering & price

Product name / designation: Tray trolley PXF14T13C1
Price: on request (individual configuration / bespoke options)
