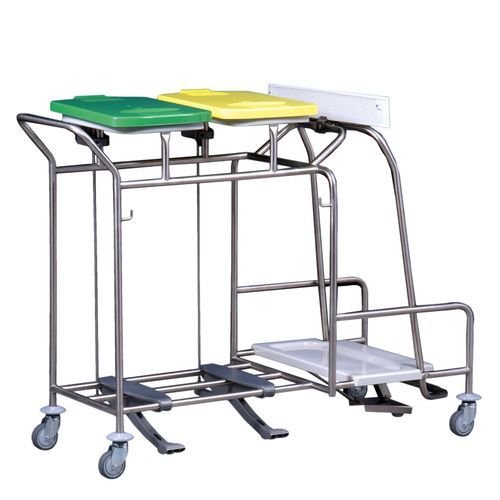

Dirty linen trolley WU275LT

wastelaundrywith foot pedal

Description
Waste collector WU275LT with integrated handle and pedal mechanism. Constructed in stainless steel for mobile waste handling in industrial and institutional environments.

Features

• All frames solid welded for structural integrity
• Two rectangular grip rings HR 2000 for secure bag fixation
• Lower hinge bracket and pedal mechanism with stainless steel push rod and plastic components
• CLAPPY spring-shut waste collector with fastening ring that also acts as a closing mechanism
• Foot pedal operation which simultaneously functions as brake
• 4 swivel castors Ø 75 mm, 2 with brake; full‑rubber, grey, non‑marking tread
• 4 rubber donut bumpers for impact protection

Dimensions
Approx. 1210 x 585 x 980 mm (W x D x H)

Technical specifications

• Art.Nr.: WU275LT
• Material: Stainless Steel
• Frame: all frames solid welded
• Grip rings: HR 2000 (2), rectangular, longitudinal arrangement
• Waste collector: CLAPPY spring-shut for waste bags, with fastening/closing ring
• Hinge subassembly: impact‑resistant plastic with integrated wall deflector (hinge lid DT 80–DT 88 available separately)
• Mechanism: lower hinge bracket and pedal mechanism; pedal acts as brake
• Sack capacity: for 70 L plastic bags (575 x 1000 mm)
• Castors: 4 swivel castors Ø 75 mm, 2 with brake
• Bumpers: 4 rubber donut bumpers (SP 31)
• Dimensions (W x D x H): approx. 1210 x 585 x 980 mm
