Dirty linen trolley W165LTD

industrialhospitallaundry

Product overview
Stainless steel laundry collector with foot pedal, soft-close lid and rectangular clamping rings. Two variants available (W365LTD and W165LTD).

Key features

• Rectangular clamping rings for fabric bags (1 or 3 rings depending on variant)
• Includes adhesive clamping ring HR 2000
• Hinge base made of break-resistant plastic with integrated wall deflector for attaching hinge lids DT 80–DT 88 (hinge lids ordered separately)
• Foot pedal mechanism with plastic components and stainless steel push rod; pedal equipped with rubber stopper
• Soft-close lid (deckeldämpfung)
• Frame material: stainless steel; all tube connections seamlessly welded
• 4 swivel castors, Ø 75 mm, full rubber, grey, non-marking

Variants / ordering

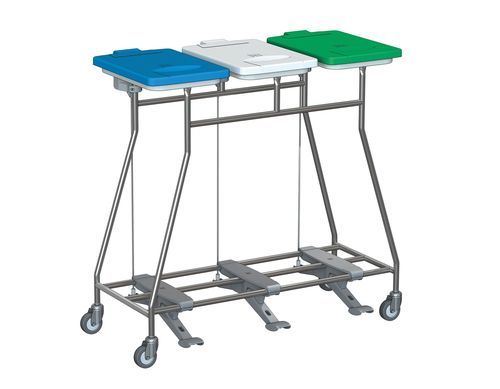

• W365LTD — 3 rectangular clamping rings; dimensions approx. 1000 x 495 x 950 mm (W x D x H)
• W165LTD — 1 rectangular clamping ring; dimensions approx. 410 x 495 x 950 mm (W x D x H)
• Article numbers: W365LTD, W165LTD
• Price: on request

Technical specifications

• Material: stainless steel (frame)
• Clamping rings: rectangular; HR 2000 adhesive clamping ring included
• Hinge base: break-resistant plastic with wall deflector (for DT 80–DT 88 hinge lids)
• Foot mechanism: plastic components + stainless steel push rod; pedal with rubber stopper
• Soft-close lid: yes
• Welding: all tube connections seamlessly welded
• Castors: 4 swivel castors, diameter 75 mm, full rubber, grey, non-marking
• Dimensions (W x D x H): see variants above

Notes

• Hinge lids DT 80–DT 88 are not included and must be ordered separately
• Suitable for industrial and institutional laundry handling; consult sales for custom configurations
