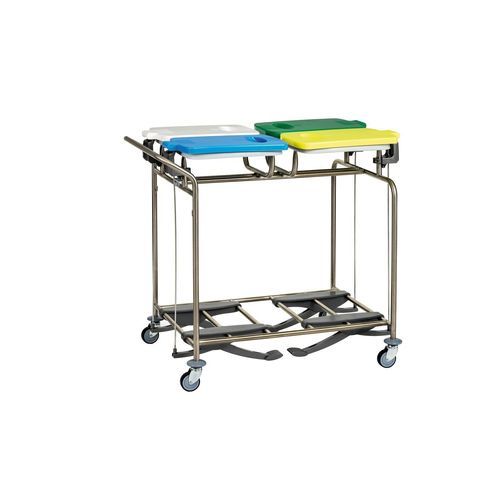

Dirty linen trolley W494LT

laundrywith foot pedalwith handle

Product
Laundry collector with foot pedal in stainless steel. Available in two configurations: compact (W265LT) and large (W494LT).

Description

• W265LT: 2 rectangular clamping rings
• W494LT: 4 rectangular clamping rings arranged in pairs
• Includes adhesive clamping ring HR 2000
• Includes lower hinge part in break-proof plastic with integrated wall deflector for mounting hinge lids DT 80–DT 88 (hinge lids ordered separately)
• Foot pedal mechanism with plastic components and stainless steel push rod; pedal fitted with rubber stopper
• Frame material: stainless steel; all tube connections continuously welded
• 4 swivel castors; wheel diameter 75 mm
• Tires: solid rubber, grey, non-marking
• Dimensions (WxDxH): W265LT ≈ 670 x 495 x 950 mm; W494LT ≈ 1000 x 700 x 950 mm

Note
Hinge lids (DT 80–DT 88) must be ordered separately. W494LT is manufactured to order and supplied with the technical equipment listed above.

Characteristics / technical specifications

• Art.No.: W265LT / W494LT
• Product name: Laundry collector with foot pedal
• Frame material: stainless steel, all tube connections continuously welded
• Clamping rings: W265LT – 2 rectangular; W494LT – 4 rectangular (pair arrangement)
• Adhesive clamping ring: HR 2000 (included)
• Lower hinge part: break-proof plastic with integrated wall deflector (included)
• Foot mechanism: plastic components + stainless steel push rod, pedal with rubber stopper
• Handles and hooks: W494LT includes sliding handle and 2 stainless steel hooks
• Bumpers: 4 impact protection discs (SP 32) on W494LT
• Castors: 4 swivel castors (W494LT: 2 with double brake), wheel diameter 75 mm
• Tires: solid rubber, grey, non-marking
• Dimensions (WxDxH): W265LT ≈ 670 x 495 x 950 mm; W494LT ≈ 1000 x 700 x 950 mm
