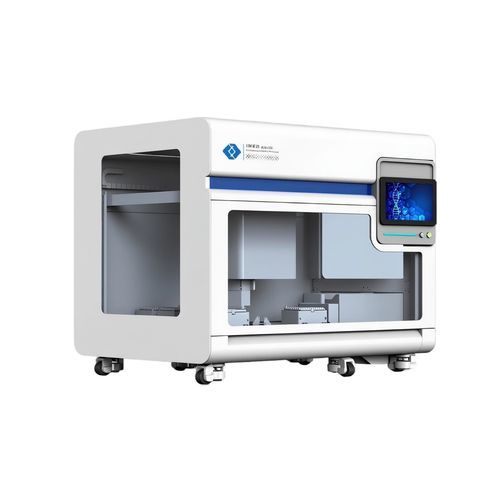

Liquid handling pipetting robot PrepFlex 100

for next-generation sequencingfor researchNGS

Product Description
Bioer PrepFlex 100 is a stand-alone, benchtop automated liquid handling workstation designed to streamline NGS DNA library preparation and hybrid capture workflows. The modular system integrates PCR, temperature control and magnetic separation modules to reduce manual steps. HEPA filtration and UV sterilization are included to help control cross-contamination.

Layout
Deck layout diagram is provided on the product page to indicate module and plate placement for routine protocols and custom configurations.

Application Field
Designed for next-generation sequencing (NGS) DNA library preparation and hybrid capture workflows in research and clinical laboratories.

Specification (table)
Product Name: Automated Liquid Handling Workstation
Cat. NO.: BYQ6357E
Model: PrepFlex 100
Touchscreen: 10.1 inch
Sample Throughput: 24 samples/run
Deck Position: 16
Pipetting Channels: Single-channel, Eight-channel
Robotic Arm: 1
Contamination Methods: HEPA System and UV Lamp
Program Storage: >1000
Certificate: EMC/LVD
Dimensions: 945mm(L) × 715mm(D) × 885mm(H)
Weight: 130KG

Ordering / Compatible Kits and Consumables

• BSQ25 — BioseqFlex Universal FS DNA Library Preparation Kit II — 24T/96T
• BSQ16 — BioseqFlex Universal DNA Library Preparation Kit I — 24T/96T
• BSQ19 — BioseqFlex NGS Hybridization Capture Kit I — 24T/96T
• BSQ20 — Human Hybrid Capture Panel (150 gene) — 24T
• BSQ21 — Human Hybrid Capture Panel (750 gene) — 24T
• BSQ22 — Human Hybrid Capture Panel (HRD/HRR gene) — 24T
• BSQ24 — Human Hybrid Capture Panel (WES) — 24T
• BSH138R1-FLS — 50μL Filtered Pipet Tip (B) — 96 pieces/rack, 50 racks/box
• BSH118R1-FLS — 200μL Filtered Pipet Tip (B) — 96 pieces/rack, 50 racks/box
• BSH119R1-FLS — 1000μL Filtered Pipet Tip (B) — 96 pieces/rack, 50 racks/box
• BSH135S1C-L — Hard-Frame 0.2 ml 24 Well semi-Skirted PCR Plate — 25 pieces/box, 12 boxes/case

Technical Features / Specifications

• Product Name: Automated Liquid Handling Workstation
• Cat. NO.: BYQ6357E
• Commercial model: PrepFlex 100
• Touchscreen: 10.1 inch
• Sample throughput: 24 samples per run
• Deck positions: 16
• Pipetting channels: Single-channel and Eight-channel options
• Robotic arm: 1
• Contamination control: HEPA filtration and UV lamp sterilization
• Program storage capacity: >1000 protocols
• Certificates: EMC / LVD
• Dimensions (L×D×H): 945mm × 715mm × 885mm
• Weight: 130 KG
