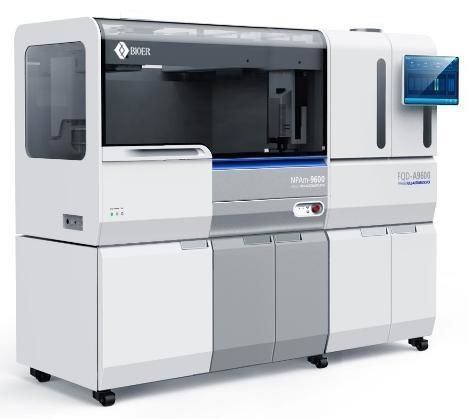

Real-time thermal cycler FQD-A9600 series

for qPCRfluorescence96-well

Product overview
The FQD-A9600 Automatic PCR Analysis System is a fully integrated sample-in/result-out platform that automates decapping, nucleic acid extraction, PCR setup, plate sealing, qPCR and data analysis to support high-throughput molecular workflows in clinical and research laboratories.

Key features

• Full automation: End-to-end automation from sample loading to result export, minimizing hands-on time.
• High throughput: Streamlined workflow capable of processing over 2200 samples in 24 hours.
• Contamination control: Three independent zones, gradient negative pressure, UV lamp and HEPA filtration to reduce cross-contamination risk.
• Performance: First run ~2 hours; subsequent runs ~1 hour. PCR ramp rate ≥6℃/s; PCR precision ≤±0.1℃.
• Flexible detection: Configurations with 4, 5 or 6 detection channels; throughput 1–96 wells.

Application field
Designed for clinical diagnostics, biomedical research and high-throughput laboratory testing where consistent, reproducible molecular results and laboratory integration (LIS) are required.

Technical specifications

• Product Model: FQD-A9600(EA4), FQD-A9600(EA5), FQD-A9600(EA6)
• Throughput: 1–96 wells
• Detection Channel: 4 / 5 / 6
• Detection Efficiency: ≥2200 samples / 24 hours
• Nucleic Acid Purification Volume: 20–1000 μL
• Magnetic Beads Recovery Rate: ≥99%
• Nucleic Acid Purification Temperature Range: 4–100 ℃
• Number of Pipettes: 2
• PCR Volume: 5–100 μL
• PCR Temperature Range: 4–105 ℃
• PCR Precision: ≤±0.1 ℃
• PCR Ramp Rate: ≥6 ℃/s
• Dimensions: 1950 mm × 770 mm × 1615 mm (L × W × H)
• Data Analysis: Export to CSV, Excel, txt or equivalent formats
• LIS Interface: Bidirectional LIS communication
• Liquid Level Detection: Capacitance and pressure sensing
• Certificate: CE-IVDR
