Peltier effect thermal cycler GE-96DX
gradient96-wellfor molecular diagnostic

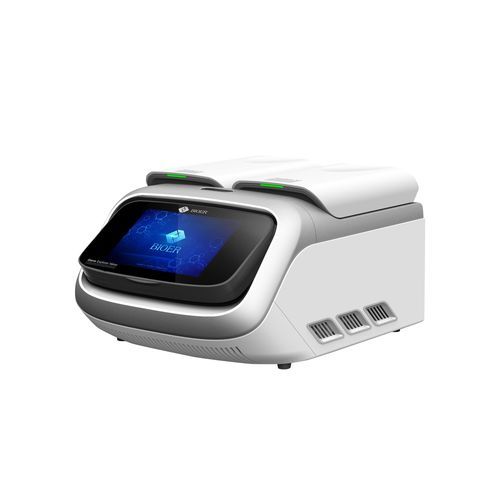

Peltier effect thermal cycler - GE-96DX - Hangzhou Bioer Techonology - gradient / 96-well / for molecular diagnostic
Peltier effect thermal cycler - GE-96DX - Hangzhou Bioer Techonology - gradient / 96-well / for molecular diagnostic
Add to favorites
Compare this product

Characteristics

Technology
Peltier effect, gradient
Number of wells
96-well
Applications
for molecular diagnostic
Configuration
dual-block
Other characteristics
with USB port, WiFi, with touchscreen
Sample volume

Max.: 0.1 ml
(0 US fl oz)

Min.: 0.01 ml
(0 US fl oz)

Temperature range

Max.: 105 °C
(221 °F)

Min.: 4 °C
(39.2 °F)

Weight

34 kg
(74.96 lb)

Width

40 cm
(15.7 in)

Depth

56.4 cm
(22.2 in)

Height

32 cm
(12.6 in)

Description

Product Overview
The GeneExplorer Thermal Cycler GE-96DX is a high-throughput PCR platform designed for routine molecular biology and clinical workflows. Featuring two independent 96‑well blocks with 3 temperature control zones per block (2×3 partition), it enables simultaneous processing of diverse protocols and gradient experiments while maximizing lab throughput. The 10.1‑inch touchscreen and mobile app support simplify program setup and remote monitoring.

Key Features
  • Smart Operation: unified user interface for intuitive program editing; real‑time remote monitoring via mobile app; electric heated lid with automatic opening/closing adjustment.
  • Precise Temperature Control: imported alloy components, upgraded bottom heat‑dissipation module and custom Peltier element ensure high precision (≤0.2℃) and uniformity.
  • High Throughput & Flexibility: 2×96‑well capacity to meet large‑scale testing; each block operates independently and offers 3 temperature zones to support varied protocols and improve experimental efficiency.


Applications
Suitable for high‑throughput laboratories, clinical diagnostics, genomic research and large‑scale PCR testing. Independent blocks and customizable temperature zones allow simultaneous different experiments or gradient optimization. Mobile app compatibility enables remote run supervision and management.

Technical Specifications
  • Product Name: GeneExplorer Thermal Cycler
  • Model: GE-96DX
  • Sample Capacity: 96×0.2 mL + 96×0.2 mL
  • PCR Volume Range: 5–100 µL
  • Display Interface: 10.1 inch touchscreen
  • Temperature Range: 4–105℃ (min. resolution: 0.1℃)
  • Hot-lid Temperature Range: 30℃–110℃
  • Max. Ramp Rate: 2.5℃/s
  • Temperature Uniformity: ≤0.2℃
  • Temperature Accuracy: ≤0.2℃
  • Temperature Control Zones: 3 temperature zones per block (6℃ zone-to-zone)
  • Memory: ≥2000 programs onboard; unlimited with USB flash drive expansion
  • Network Connections: USB / LAN / WIFI
  • Hot-lid Mode: Electric heat lid, one-time locking
  • Mobile App Compatibility: iOS / Android
  • Dimension (L×W×H): 564 mm × 400 mm × 320 mm
  • Power Supply: 100–240 V, 50–60 Hz, 1200 W
  • Weight: 34 kg
  • Certificate: CE-IVDR
