Digital DNA amplification system DcentriGene 160

for molecular diagnostic

Product Description

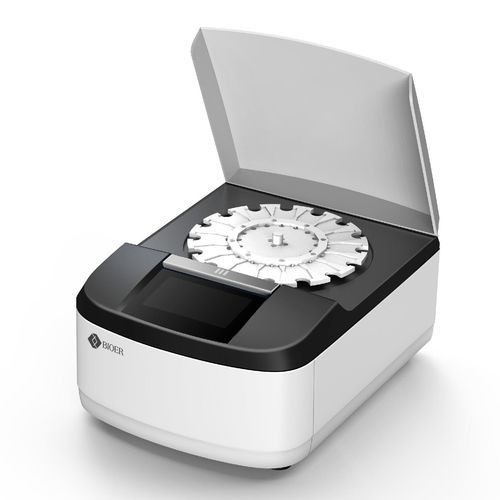

The Droplet Chip Digital PCR Analysis System DcentriGene 160 is a six‑plex digital PCR platform for precise, ultrasensitive quantification of nucleic acids without a standard curve. Designed for clinical research and diagnostic workflows, the system includes a MicroDrop Generator, dPCR Thermal Cycler, MicroChip Reader and dedicated control and analysis software. The MicroDrop Generator uses centrifugal partitioning to produce 25,000–32,000 uniform droplets per sample, minimizing dead volume and maximizing sample use. Each droplet contains either zero or one target molecule, enabling absolute quantification with high precision.

Product Features

• Safe and simple closed‑chip sample handling to prevent cross‑contamination
• Centrifugal droplet generation for uniform partitioning and no bubble interference
• Ultrasensitive detection down to single‑copy targets
• Optimized patented imaging and analysis algorithm for accurate droplet classification

Fully enclosed chip design prevents cross contamination and enables one‑step sample loading without additional operations.
Centrifugal droplet generation avoids bubbles and eliminates dead volume to maximize sample utilization.
Single‑copy detection achievable for low‑abundance targets.
Patented imaging technology combined with advanced image analysis improves accuracy and repeatability of results.

Characteristics / Technical specifications

• Product Name: Droplet Chip Digital PCR Analysis System
• Product Model: DcentriGene 160
• System components: MicroDrop Generator; dPCR Thermal Cycler; MicroChip Reader; dedicated control and analysis software
• Droplet partition per sample: 25,000–32,000 droplets
• Sample Throughput: 1–16 samples
• Sample Volume (µl): 15
• Detection Channel: 6
• Dimension: Droplet generator: 380 × 240 × 170 mm; PCR: 560 × 380 × 320 mm; Microchip Reader: 565 × 413 × 265 mm
• Power: Droplet generator: 100 W; PCR: 1200 W; Microchip Reader: 200 W
• dPCR Thermal Cycler details: four independent temperature‑controlled zones; each zone can perform PCR for up to four samples simultaneously
