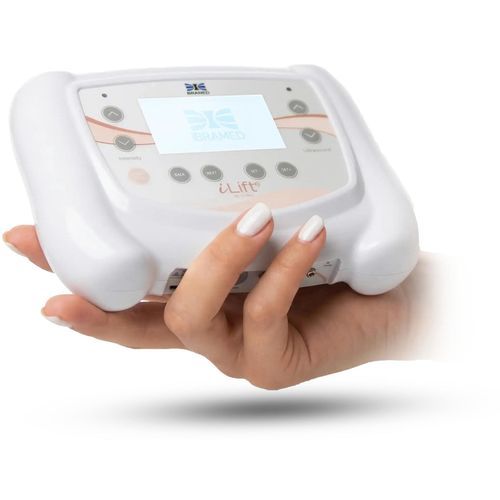

Linear-array ultrasound transducer iLift

small parts

Summary
iLift is a facial therapeutic ultrasound device designed for modern rejuvenation and dermal biostimulation protocols. It operates at specific superficial frequencies and allows combined therapy with electrotherapy modalities integrated in the transducer.

Main features

• Frequencies: 5.5 MHz and 10.10 MHz (targets superficial skin layers; indicated for dermal biostimulation, texture improvement and reduction of fine lines).
• Integrated combined therapy in the transducer: ultrasound plus electrotherapy options to expand protocol possibilities.
• Six available electrotherapy modes: Aussie, Russian, TENS, FES, Microcurrent and Polarized Current.
• Dedicated applicators for facial anatomy, including a precision applicator (Derma Precision).
• Device intended for aesthetic and facial rehabilitation use with protocols for rejuvenation, post-procedure recovery and biostimulation.

Applicators / Transducers

• ERA 3 cm² applicator – 5.5 MHz: suited for larger facial regions (cheeks, forehead, neck, décolleté).
• ERA 3 cm² applicator – 10.10 MHz: for expanded superficial action on the skin.
• Derma Precision applicator (ERA 1 cm² – 10.10 MHz) – exclusive: indicated for small/high-precision areas (periocular region, nasolabial fold, perioral lines, localized wrinkles).

Available electrotherapy modes

• Aussie
• Russian
• TENS
• FES
• Microcurrent
• Polarized Current

Clinical and aesthetic indications

• Facial rejuvenation
• Skin texture improvement
• Reduction of fine lines and superficial wrinkles
• Advanced rejuvenation protocols
• Post-procedure recovery
• Dermal biostimulation
• Specific protocols (periocular, nasolabial fold, submental area, nasolabial lines, localized wrinkles)

Accessories and items included (summary)

• 5 MHz transducer – ERA 3 cm²
• 10 MHz transducer – ERA 3 cm²
• Derma Precision 10 MHz transducer – ERA 1 cm² (exclusive)
• Switched-mode power supply 24 V / 3.0 A (recommended model)
• Electrostimulation cables (double), dispersive cable
• Pen body for electro-lifting and tips (sphere and roller)
• Self-adhesive conductive electrodes (3 cm x 3 cm and 8 cm x 7.5 cm)
• Natural sponge and tube of gel (referenced capacity)

Commercial and support notes
Device protocols and training are provided via Ibramed Academy. Launch bonuses and exclusive protocols are mentioned in the product presentation (promotional information on the page).

Technical specifications

• Operating frequencies: 5.5 MHz and 10.10 MHz
• Applicators: ERA 3 cm² (5.5 MHz), ERA 3 cm² (10.10 MHz), Derma Precision ERA 1 cm² (10.10 MHz)
• Integrated currents: Aussie, Russian, TENS, FES, Microcurrent, Polarized
• ANVISA registration: 10360319019
• Approximate dimensions: width 19.9 cm ±5%, length 13.9 cm ±5%, height 4.25 cm ±5%
• Approximate net weight: 0.4 kg ±5%
• Power supply: 100-240V~50/60Hz (universal)
• Accessories: 24 V/3.0 A power supply, electrostimulation cables, adhesive electrodes, pen body for electro-lifting, tips and conductive gel (full details in the device manual).
