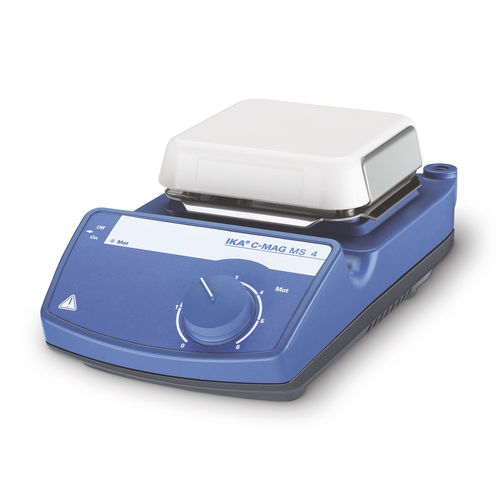

Magnetic laboratory stirrer C-MAG MS 4

magnetic laboratory stirrer
magnetic laboratory stirrer
Add to favorites
Compare this product


Rotational speed

Max.: 1,500 rpm (9,425 rad.min-1)

Min.: 100 rpm (628 rad.min-1)


Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance. Powerful motor for stirring quantities of up to 5 l (H2O) Fixed safety circuit of 550 °C Hot Top indicator >> hot surface warning to prevent burns! Exact temperature setting via digital display (LED) Digital error code display Elevated control panel for protection against leaking liquids Technical Data Number of stirring positions1 Stirring quantity max. per stirring position (H2O)5 l Motor rating output1.5 W Direction of rotationleft Speed controlscale 0 - 6 Speed range100 - 1500 rpm Heat output250 W Heating temperature range50 - 500 °C Heat controlLED Heating rate heating plate2.5 K/min Fixed safety circuit 550 °C Set-up plate materialceramic Set-up plate dimensions100 x 100 mm Dimensions (W x H x D)150 x 105 x 260 mm Weight3 kg Permissible ambient temperature5 - 40 °C Permissible relative humidity80 % Protection class according to DIN EN 60529IP 21 Voltage230 / 120 / 100 V Frequency50/60 Hz Power input270 W
