magnetic laboratory stirrer / digital / benchtop
C-MAG HS 7 control

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
magnetic laboratory stirrer / digital / benchtop magnetic laboratory stirrer / digital / benchtop - C-MAG HS 7 control


  • Type:


  • Display:


  • Configuration:


  • Rotational speed:

    Min.: 50 rpm (314 rad.min-1)

    Max.: 1,500 rpm (9,425 rad.min-1)

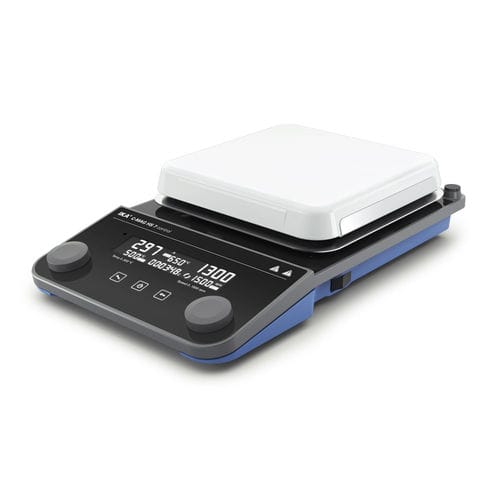

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer. IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently. PT1000 temperature sensor included.

Technical Data
Number of stirring positions1
Stirring quantity max. per stirring position (H2O)20 l
Motor rating output9 W
Direction of rotationright / left
Speed display set-valueLCD
Speed display actual-valueLCD
Speed controlTurning knob
Speed range50 - 1500 rpm
Setting accuracy speed10 rpm
Stirring bar length30 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)2 +K
Heat output1000 W
Temperature display set-valueLCD
Temperature display actual-valueLCD
Temperature unit°C
Heating temperature rangeroom temp. - 500 °C
Heat controlTurning knob
Temperature setting range0 - 500 °C
Temperature setting resolution of heating plate5 K
Connection for ext. temperature sensorPT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium1 K
Adjustable safety circuit100 - 650 °C
Set-up plate materialceramic
Set-up plate dimensions180 x 180 mm
