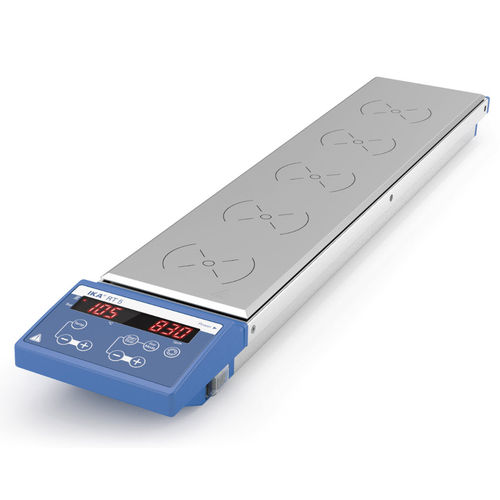

Magnetic laboratory stirrer RT series
digitalbenchtopmulti-position

magnetic laboratory stirrer
magnetic laboratory stirrer
magnetic laboratory stirrer
magnetic laboratory stirrer
Add to favorites
Compare this product


Characteristics

Type
magnetic
Display
digital
Configuration
benchtop
Other characteristics
multi-position
Rotational speed

Max.: 1,000 rpm
(6,283 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Temperature range

Max.: 120 °C
(248 °F)

Min.: 0 °C
(32 °F)

Description

5 | 10 | 15-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes. • Homogeneous temperature distribution across the heating plate • Adjustable reverse operation • Eco-mode for a low self-warming of the surface • Wear free magnetic coils • Error code display • Easy operation with touch keypad • Suitable for continuous operation Also available as 10- or 15-position stirrer plate. Technical Data Number of stirring positions: 5 Stirring position distance: 90 mm Speed deviation of individual stirring positions: 0 % Stirring quantity max. per stirring position (H2O): 0.4 l Speed control: 10 RPM Steps Stirring bar length: 25 - 30 mm Heat output: 175 W Heat control: LED Heating rate heating plate: 3 K/min Adjustable safety circuit: 50 - 150 °C Set-up plate material: Aluminium alloy Set-up plate dimensions: 110 x 495 mm Dimensions (W x H x D): 120 x 60 x 610 mm Weight: 4 kg Permissible ambient temperature: 5 - 40 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 40 Voltage: 230 / 115 / 100 V Frequency: 50/60 Hz Power input: 200 W
