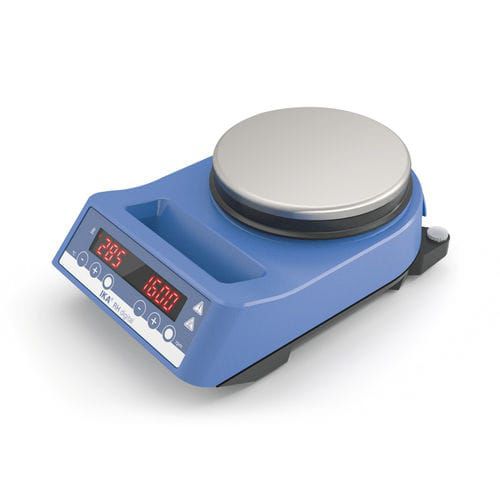

Magnetic laboratory stirrer RH digital white
digitalbenchtop

magnetic laboratory stirrer
magnetic laboratory stirrer
magnetic laboratory stirrer
magnetic laboratory stirrer
Add to favorites
Compare this product

Characteristics

Type
magnetic
Display
digital
Configuration
benchtop
Rotational speed

Min.: 100 rpm (628 rad.min-1)

Max.: 2,000 rpm (12,566 rad.min-1)

Temperature range

Min.: 50 °C (122 °F)

Max.: 320 °C (608 °F)

Description

Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and white ceramic heating plate ensures rapid heating and a very good chemical resistance. Adjustable safety temperature from 100 to 360 °C. Digital display of temperature and speed Soft-start of stirring motor Strong magnetic field and wide speed range for volumes up to 15 liters Error code display Easy operation with touch keypad Technical Data Number of stirring positions1 Stirring quantity max. per stirring position (H2O)15 l Motor rating output2 W Direction of rotationleft Speed display set-valueLED Speed controlButton Speed range100 - 2000 rpm Stirring bar length20 - 80 mm Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)28 +K Heat output600 W Temperature display set-valueLED Temperature unit°C Heating temperature range50 - 320 °C Heat controlButton Temperature setting range50 - 320 °C Heating rate heating plate6 K/min Connection for ext. temperature sensorETS-D5 Adjustable safety circuit100 - 360 °C Set-up plate materialtechnical enamel Set-up plate dimensionsØ 135 mm Dimensions (W x H x D)160 x 100 x 250 mm Weight3.861 kg Permissible ambient temperature5 - 40 °C Permissible relative humidity80 % Protection class according to DIN EN 60529IP 21 Voltage230 / 115 / 100 V Frequency50/60 Hz Power input620 W
