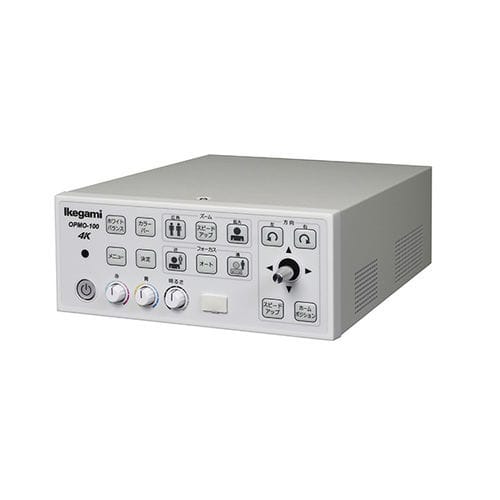

Surgical camera controller OPMO-100

digital1920 x 10803840 x 2160

Product overview
Multi-model combining camera CCU functions and pan-tilt remote control. Designed to be operated as a set with OPAC-100 (pan-tilt integrated 4K surgical camera) or OPCL-100 (4K surgical camera).

Features

• High image quality from a 1/1.8-inch 4K CMOS sensor achieving a horizontal resolution of 1800 TV lines.
• Intuitive operation: angle-following function enables natural pan/tilt control while viewing video even when the camera is rotated.
• Single camera cable connection simplifies cabling.
• System expansion: RS-232C support allows integration into operating room video systems.

System configuration
This unit is intended for set operation with OPAC-100 or OPCL-100. It provides external outputs and control terminals designed for integration with operating room video systems.

Download
Related catalogs are available for download from the product page.

Features / Specifications

• Model: OPMO-100
• Camera cable length: up to 30 m (between OPAC-100 or OPCL-100)
• 3G/HD-SDI outputs: 2 channels, 1920×1080 i/p, 59.94 Hz
• HDMI output: 1 channel, 3840×2160p 59.94 Hz or 1920×1080 i/p 59.94 Hz
• Sync: internal
• External control: infrared remote, RS-232C D-SUB 9-pin (male)
• Power / consumption: AC 100 V (50/60 Hz) / ≤35 W
• Operating temperature / humidity: 0 °C to +40 °C / 30–90% (non-condensing)
• Dimensions / weight: W210 × H88 × D274 mm (excluding protrusions) / ≤3.1 kg
• Standard accessories: AC cable, user manual (installation guide)
