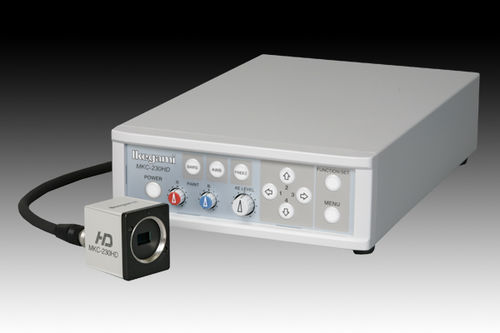

Endoscope camera head MKC-230HD
for microscopesdigitalHD

endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
Add to favorites
Compare this product


for endoscopes, for microscopes
Resolution level
HD, full HD, 1920 x 1080
Sensor type
Other characteristics
with video processor

2 kg (4 lb)


The main feature of MKC-230HD is to process the image signals with 1080p native progressive and to output 3G HD-SDI 1080p signals. It should contribute to supply the better image quality with the advanced image processing. Compact Camera Head W34 x H40 x D40mm and 100g or less. High Resolution / High Sensitivity Full HDTV 1/3-inch 3CMOS Sensors Provides 1000 TV lines of high definition video images, coupled with High Sensitivity performance of F14/2000lux providing the optimal video quality required for high-end medical video systems. Digital Processing Video signal processing is done in high-performance digital process of newly developed. A Variety of video output The camera equips with several video signal outputs such as digital HD signal (HD-SDI 1920 × 1080i/p), DVI digital signal (1920 × 1080i/p) and NTSC/PAL signal (VBS, S-VIDEO). Automatic Electronic Shutter System (Shutter Iris) Electronic shutter (Shutter Iris) functionality maintains the optimized performance in variety of situations. Automatic Iris Control Accurate iris control is possible with Auto-iris camera adaptors and Auto-iris lenses. Picture Freeze Pressing the Freeze button on the CCU panel will hold the current image. This allows the detailed checking of situations where the motion could hide the details. Scene File 4 scene files are provided to keep pre-set memories for functions and controls. When the camera setting is changed, it can be easily set back to the original settings. Digital zoom Function The center of video image of the screen can be zoomed up to four times by using this function.


2 Pages
