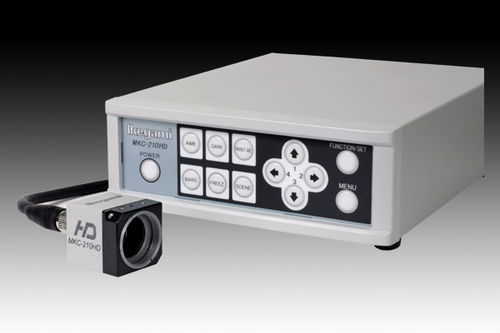

Endoscope camera head MKC-210HD
medicalfor microscopesdigital

endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
Add to favorites
Compare this product


for endoscopes, medical, for microscopes
Resolution level
full HD, 1920 x 1080
Sensor type
Other characteristics
with video processor

1 kg
(2 lb)


Newly Developed 1/3-inch FULL HDTV High Resolution: Horizontal 900 TV lines, S/N50dB High Sensitivity: F7 at 2000lux Ultra Compact Camera-Head: W31xH31xD36mm Excellent Operability for Use in the Medical Field Ultra Compact Camera-Head The camera-head is extremely small (W31xH31xD36mm) and lightweight. High Resolution and High Sensitivity The MKC-210HD employs a 2.2Mega pixel 1/3-inch CMOS Sensor to provide 900 lines of high resolution video image, high S/N ratio of 50dB and high sensitivity of F7/2000lux. Digital Processing Video signal processing is done in the same signal process as Ikegami’s broadcast cameras to constantly achieve the same high level of quality and reliability. Various Types of Video Signal Outputs Equipped with several video signal outputs such as digital HD signal (HD-SDI), DVI digital signal (1920x1080), NTSC/PAL composite signal (VBS) and S-VIDEO to deal with various types of signals. Adding one more channel of DVI output is available as an option. Automatic Electronic Shutter System (Shutter Iris) Electronic shutter (Shutter Iris) functionality maintains the optimized performance in a variety of situations. Automatic Iris Control Accurate iris control is possible with Auto-iris camera adaptors and Auto-iris lenses. * This is used for the shadowless lamp system. Scene File 4 scene files are provided to keep pre-set memories for functions and controls. It is easily possible to call suitable programs to adapt the conditions for taking photographs by this function. Picture Freeze Pressing the Freeze button on the CCU panel will hold the current image.
