Carton labeler SENSITIVE AP400 Series

pharmaceutical industryautomaticlinear

Overview
The SENSITIVE AP400 is a complete series of automatic linear labellers designed to apply self-adhesive labels to cartons at high speeds. The series comprises several models with specific features and can be supplied as stand-alone units or integrated in complete packaging lines.

• SENSITIVE AP400 CW (100% check-weighing)
• SENSITIVE AP400 3T (up to 3 heads)
• SENSITIVE AP400 C (compact)
• SENSITIVE AP400 T (tamper-evident labels)

Key capabilities
The series is configurable to customer requirements and can accommodate up to three labelling heads (two side heads for tamper-evident seals and one top head for vignette labels). It supports printing and verification of tracking codes (2D Data Matrix, barcode) and integration of inkjet/laser printers, camera vision systems and other software for Track & Trace and serialisation. Full servomotor technology is used to ensure high precision.

Highlights

• Smart design: Compact, ergonomic stainless-steel construction optimised for pharmaceutical environments; easy access for cleaning and maintenance.
• Type of cartons: Handles a wide range of carton styles including aeroplane style and reverse-tuck cartons.
• Printing and serialisation: Supports overprinting devices and camera vision systems for Track & Trace and serialisation assurance.
• Full servomotor technology: Ensures maximum labelling precision.
• Smooth carton transfer: Positive transport with toothed belt for smooth transfer across working areas.
• Easy label handling: Label reel holders slide on rails with automatic de-reeling and end-of-reel detection sensors.
• Intuitive HMI: Effective machine monitoring and data collection supervision.
• Triple rejection system: Rejects cartons failing weight parameters, unlabelled/un-serialised cartons or cartons with printing/labelling non-conformities.

Machine versions (summary)

• SENSITIVE AP400 3T: Versatile configuration options (1–3 labelling heads). Designed for tamper-evident sealing and vignette application at high speeds; ergonomic and easy on maintenance.

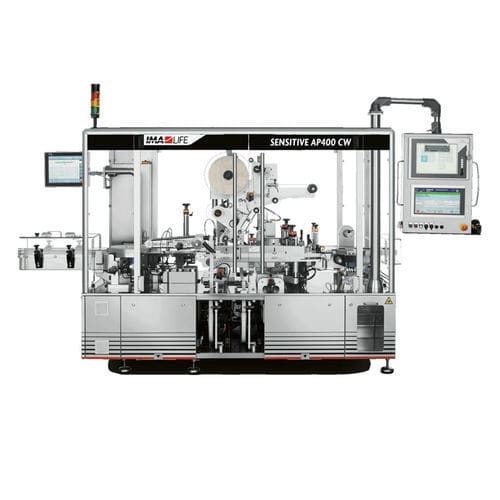

• SENSITIVE AP400 CW: Integrated 100% check-weighing system; applies labels on up to three carton sides while performing weight verification and serialisation checks; includes three rejection systems and positive product transport for high production flow (up to 400 ppm depending on configuration).
• SENSITIVE AP400 C: Compact, space-efficient (approx. 1,400 mm length) version suitable for restricted footprints; supports up to three labelling heads for top/bottom and tamper-evident applications; ideal as stand-alone or for line integration/upgrades.
• SENSITIVE AP400 T: Focused on tamper-evident sealing; compact and ergonomic with two labelling units on carton sides; stepping/servo synchronisation for precise application; high throughput with reduced footprint.

Media and verification features (no links included)
Several product images and video trailers/documentation show: tamper-evident application, top label application, internal overviews, check-weighing unit, laser printing detail, carton infeed/outfeed, triple rejection system, and dedicated video trailers for AP400 CW and AP400 C.

Technical specifications

• General series capabilities: Configurable up to 3 labelling heads (two side for tamper-evident + one top for vignettes); printing and verification for 2D Data Matrix / barcodes; integration of inkjet/laser printers and vision systems; servomotor-driven mechanisms; positive toothed-belt carton transport; label reel holders with automatic de-reeling and end-of-reel sensors.
• Labelling accuracy: ±1 mm (typical).
• Vignette label size: Length 15–60 mm; Height 10–60 mm (model-dependent).
• Vignette reel diameter: Up to 400 mm.
• Tamper-evident label size: Length 15–35 mm; Height 15–35 mm.
• Tamper-evident reel diameter: Up to 400 mm.
• Carton size ranges (typical): A (length) 20–130 mm (larger sizes managed by custom configuration); B (width) 12–100 mm; C (height) 50–210 mm. *Larger dimensions handled by customer configuration options.
• SENSITIVE AP400 CW (typical data): Maximum output up to 400 cartons/min; installed power approx. 5 kW (depending on configuration); standard voltage 400 V – 50 Hz – 3PH + PE; available A widths: 400 / 600 / 800 / 1100 mm (infeed/format options); approximate weight 1,200 kg.
• SENSITIVE AP400 3T (typical data): Maximum output up to 400 cartons/min; installed power approx. 3.5 kW (depending on configuration); standard voltage 400 V – 50 Hz – 3PH + PE; available A widths: 400 / 600 / 800 / 1100 mm; approximate weight 1,000 kg.
• SENSITIVE AP400 C (typical data): Maximum output up to 400 cartons/min; installed power approx. 3.5 kW (depending on configuration); standard voltage 400 V – 50 Hz – 3PH + PE; approximate weight ~750 kg; very compact footprint (length ~1,400 mm).
• SENSITIVE AP400 T (typical data): Maximum output up to 500 cartons/min (model-dependent); installed power approx. 3.5 kW; standard voltage 400 V – 50 Hz – 3PH + PE; approximate weight ~500 kg.
• Rejected-cartons handling: Triple rejection strategy (weight non-conformity, unlabelled/un-serialised, printing/labelling non-conformities).
• Production plant / environment: Designed for pharmaceutical-grade production with stainless-steel finishes and easy access for cleaning and maintenance.
