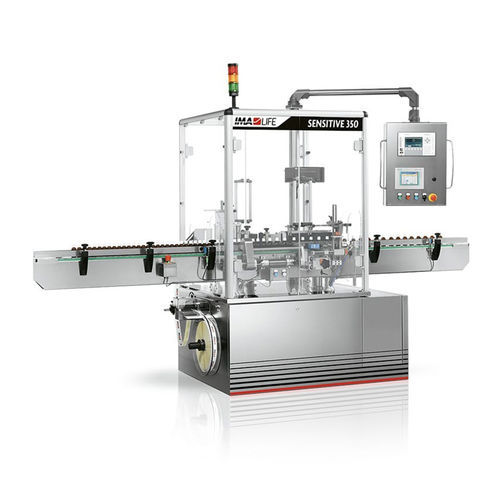

Bottle labeler SENSITIVE 350

for containerslinearbarcode label

Overview
SENSITIVE 350 is a linear labelling machine suitable for applying self-adhesive, wrap-around labels to cylindrical glass, metal and plastic containers. The machine features a single-side labelling head mounted on the machine base for direct access to label reels, and is designed to ensure accurate label application through controlled spacing between containers and an adjustable application group. The PLC-controlled system with user-friendly HMI enables easy supervision and monitoring of the labelling process.

Machine highlights

• Compact stainless steel construction for industrial environments.
• Available as a stand-alone unit or integrated into complete processing and packaging lines.
• Stepping motor drives label dispensing and application.
• Rejection unit handles containers with missing labels or incorrect prints.
• Safety system detects fallen bottles and stops the machine with alarm notification.
• Easy access to components for quick clearance and cleaning.

Printing and serialisation
SENSITIVE 350 allows integration of overprinting devices such as hot-foil, thermal transfer, laser and inkjet. Overprint control options include video-based character check (OCV/OCR), barcode and Data Matrix verification.

Typical machine areas / operations

• Bottle infeed
• Infeed screw and label application
• Label release and folding
• Labelling unit
• Label presence check
• Bottle outfeed

TECHNICAL DATA (table)
TECHNICAL DATA SENSITIVE 350
Maximum output (pieces/minute): 350
Installed power (kW): 2
Standard voltage: 400 V – 50 Hz
Bottle maximum height (mm): 220
Bottle diameter (mm): 16-78
Label height (mm): 10-100
Label length (mm): 15-250
Label reel diameter (mm): 400
Label accuracy (mm): ±1

caractéristiques / spécifications techniques

• Maximum output: 350 pieces/min
• Installed power: 2 kW
• Standard voltage: 400 V – 50 Hz
• Bottle maximum height: 220 mm
• Bottle diameter range: 16–78 mm
• Label height range: 10–100 mm
• Label length range: 15–250 mm
• Label reel diameter: 400 mm
• Label accuracy: ±1 mm
