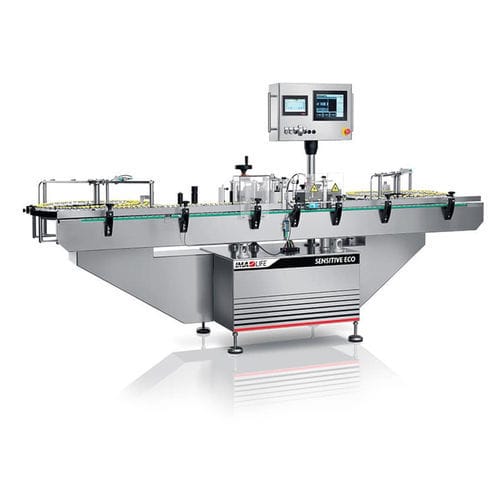

Bottle labeler SENSITIVE ECO series

for containerspharmaceutical industryautomatic

Overview
SENSITIVE ECO is the essential all-around labelling solution for the application of self-adhesive labels to cylindrical containers (glass, metal or plastic). It offers a reliable, cost-effective system and is available both as a stand-alone machine and for easy integration into complete processing and packaging lines. A specific LV version (SENSITIVE ECO LV) is available for tall or large-volume containers.

Machine highlights

• Smart design: compact, ergonomic construction with stainless steel finish.
• Available versions: stand-alone or integrated in processing and packaging lines; LV version for large-volume containers.
• Rejection unit: handles containers with missing labels and/or incorrectly printed data.
• Stepping motor: drives the label dispensing and application group for accurate application.
• Printing and serialisation: easy installation of overprinting devices and camera vision systems to read and check data.
• Accessibility: straightforward access across the entire labelling process for quick clearance and cleaning.

Machine versions

• SENSITIVE ECO: compact linear labelling machine designed for accurate, easy-to-use application of self-adhesive labels to cylindrical containers for low-to-medium outputs. Features one side labelling head, dispensing unit with a large-capacity recovery system controlled by a mechanical clutch to keep the paper taut, an EVER control system, electro-mechanical instrumentation and interlocks housed under the work surface.
• SENSITIVE ECO LV: version designed for pharmaceutical and non-pharmaceutical industries that need to label tall or high-capacity containers. Includes a spacing unit for appropriate container distance, an application group adjustable with a digital indicator handwheel and an integrated side label reel holder with automatic de-reeling and end-of-reel detection sensors.

Technical characteristics / specifications

• SENSITIVE ECO
  Maximum output (pieces/minute): 200
  Installed power (kW): 1.5
  Standard voltage: 400 V – 50 Hz
  Bottle maximum height (mm): 220
  Bottle diameter (mm): 16-78
  Label height (mm): 10-100
  Label length (mm): 15-250
  Label reel diameter (mm): 400
  Label accuracy (mm): ±1
• SENSITIVE ECO LV
  Maximum output (pieces/minute): 200
  Installed power (kW): 2
  Standard voltage: 400 V – 50 Hz
  Bottle maximum height (mm): 220
  Bottle diameter (mm): 16-120
  Label height (mm): 10-100
  Label length (mm): 15-250
  Label reel diameter (mm): 400
  Label accuracy (mm): ±1
