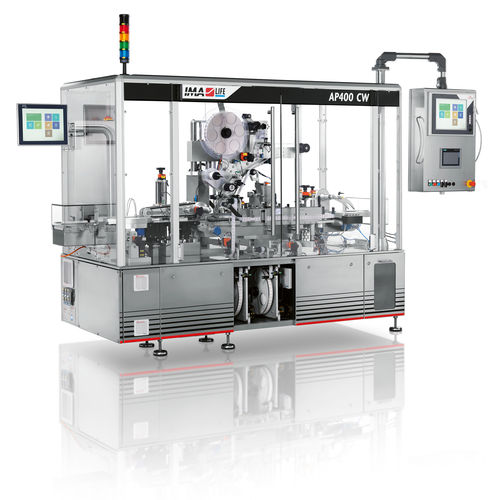

Carton labeler SENSITIVE AP400 CW

pharmaceutical industrylinearservo-driven

Overview
The SENSITIVE AP400 Series is a family of automatic linear labellers engineered to apply self-adhesive labels to cartons at high production speeds. The range is modular and configurable for stand-alone use or full integration in packaging lines. Typical integrations include inkjet/laser printers and camera vision systems for Track & Trace/serialisation, and up to three labelling heads (two side heads for tamper-evident seals and one top vignette head).

Models in the range

• SENSITIVE AP400 CW — integrated 100% check-weighing (CW) for weight control, labelling, serialisation and triple-rejection handling.
• SENSITIVE AP400 3T — flexible configuration with up to three labelling heads (top vignette plus up to two side tamper-evident heads) for multi-head and tamper-evident applications.
• SENSITIVE AP400 C — compact, ergonomic footprint for space-constrained lines; supports up to three heads for vignette and tamper-evident labels; suitable as stand-alone or for integration.
• SENSITIVE AP400 T — dedicated tamper-evident model with two side labelling units for high-speed tamper-evident sealing in a compact layout.

Key features / highlights

• Industrial design: stainless-steel construction with easy access for cleaning and maintenance, suitable for pharmaceutical production environments.
• Up to 3 labelling heads: combinations of top vignette head and up to two side tamper-evident heads.
• High-speed labelling: model-dependent throughput up to industry-level outputs.
• Check-weighing and quality control (CW variant): 100% check-weigh integration with dedicated infeed belt and per-carton weight measurement; triple rejection for non-conforming cartons.
• Printing & serialisation: integration of inkjet/laser printers and camera vision systems for printing and verifying 2D Data Matrix and barcodes (Track & Trace compliance).
• Full servomotor drive: precise and repeatable synchronisation of label dispensing and carton transport.
• Accurate carton transfer: positive toothed-belt transport for exact positioning through working stations.
• Label handling: sliding label reel holders, automatic de-reeling and end-of-reel sensor.
• Intuitive HMI: machine monitoring, data collection and supervision functions.
• Triple rejection system: rejects cartons failing weight, labelling or printing/serialisation checks.

Additional details
The series is configurable to customer requirements (carton sizes, number/type of heads, print/check systems). It meets pharmaceutical industry requirements for product protection and serialisation while minimising footprint, notably in the compact C and T variants.

Technical data — SENSITIVE AP400 CW
Maximum output (cartons/minute): 400
Installed power (kW): 5 (depending on configuration)
Standard voltage: 400 V – 50 Hz – 3PH + PE
A (mm) (machine lengths/options): 400 – 600 – 800 – 1100
Weight (kg) – approximate: 1,200
Vignette label size (mm): Length 15–60; Height 10–60
Vignette reel diameter (mm): Up to 400
Tamper-evident label size (mm): Length 15–35; Height 15–35
Tamper-evident reel diameter (mm): Up to 400
Labelling accuracy (mm): ± 1
*Depending on carton size

Technical data — SENSITIVE AP400 3T
Maximum output (cartons/minute): 400
Installed power (kW): 3.5 (depending on configuration)
Standard voltage: 400 V – 50 Hz – 3PH + PE
A (mm): 400 – 600 – 800 – 1100
Weight (kg) – approximate: 1,000
Vignette label size (mm): Length 15–60; Height 10–60
Vignette reel diameter (mm): Up to 400
Tamper-evident label size (mm): Length 15–35; Height 15–35
Tamper-evident reel diameter (mm): Up to 400
Labelling accuracy (mm): ± 1
*Depending on carton size

Technical data — SENSITIVE AP400 C
Maximum output (cartons/minute): 400
Installed power (kW): 3.5 (depending on configuration)
Standard voltage: 400 V – 50 Hz – 3PH + PE
A (mm): 400 – 600 – 800 – 1100
Weight (kg) – approximate: 750
Vignette label size (mm): Length 15–60; Height 10–60
Vignette reel diameter (mm): Up to 400
Tamper-evident label size (mm): Length 15–35; Height 15–35
Tamper-evident reel diameter (mm): Up to 400
Labelling accuracy (mm): ± 1
*Depending on carton size

Technical data — SENSITIVE AP400 T
Maximum output (cartons/minute): 500
Installed power (kW): 3.5 (depending on configuration)
Standard voltage: 400 V – 50 Hz – 3PH + PE
Weight (kg) – approximate: 500
Tamper-evident label size (mm): Length 15–35; Height 15–35
Tamper-evident reel diameter (mm): Up to 400
Labelling accuracy (mm): ± 1
*Depending on carton size

Technical specifications

• Max. output: up to 400–500 cartons/min (model-dependent).
• Labelling accuracy: ±1 mm.
• Supported label formats: vignette labels (L 15–60 mm / H 10–60 mm) and tamper-evident labels (L 15–35 mm / H 15–35 mm).
• Max. reel diameter: up to 400 mm.
• Standard supply: 400 V – 50 Hz – 3PH + PE.
• Installed power: typically 3.5–5 kW depending on configuration.
• Transport: positive toothed-belt carton transport for precise positioning.
• Options: 100% check-weighing (CW), up to 3 labelling heads (3T), compact footprint (C), tamper-evident dedicated (T), printers (inkjet/laser), camera vision and serialisation/Track & Trace systems.
• Rejection: integrated multi-point/triple rejection for weight/labelling/printing non-conformities.
