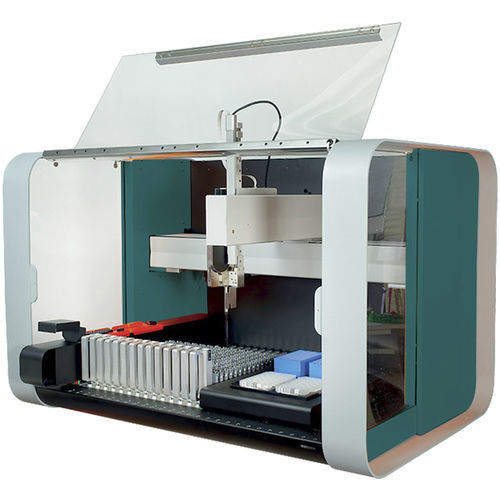

Fully-automatic blood grouping analyzer Omnys

benchtop

Overview
Omnys is a fully automated high-throughput batch blood testing system enabling high-resolution analysis of blood components, including ABO/D typing, serotyping, phenotyping, extended phenotyping and Indirect Antiglobulin Test (IAT). The platform performs multiplex assays with minimal sample volumes and integrates into standard transfusion laboratory workflows.

Key benefits

• Compatible with existing reagents, buffers and laboratory protocols
• Reduced infectious waste and plastic consumption, lowering transport footprint
• Improved laboratory productivity: complete automated characterization in 4–6 wells per sample versus 16 wells with card gel technology
• Extended sample characterization via complementary foil data and embedded controls without proportional cost increase

System architecture and main modules
The Omnys solution is a high-throughput batch system covering automated sample handling from centrifugation to image analysis. Main modules include:

• 2 pipetting arms
• 3 centrifuges
• 1 image acquisition module

High-resolution versatile 8-wells foils
Omnys 8-wells foils support up to 20 high-definition assays per well. Example foil types: ABO/D, PHENO (Rh/Kell), ExtPHENO (extended phenotyping) and IAT configurations (1–3 wells/sample depending on throughput).

Software and reagents
Omnys provides instrument software for image interpretation, sample and instrument management and quality control tracking. The system uses ready-to-use reagents, standard controls and common buffers for routine transfusion testing.

Product directory (selected items - table view)
Name | Description | Pack. | ABO and D typing | Serotyping | Phenotyping | Extended phenotyping | IAT
OMNYS_300 | Fully automated system with pipetor, 3 centrifuges and image acquisition module. | | ✖ | ✖ | ✖ | ✖ | ✖
OMNYS_Analyser | Software for OMNYS image interpretation. | | ✖ | ✖ | ✖ | ✖ | ✖
OMNYS_ABO/D | 8-wells foils (x6) for ABO forward/reverse and RhD. 2 wells/sample — 24 samples. | x6 | ✖ | ✖ | | |
OMNYS_PHENO | 8-wells foils (x6) for C, c, E, e, K, Cw. 1 well/sample — 48 samples. | x6 | | | ✖ | |
OMNYS_ExtPHENO | 8-wells foils (x6) for k, Fya, Fyb, Jka, Jkb, S, s. 1 well/sample — 48 samples. | x6 | | | | ✖ |
OMNYS_IAT | 8-wells foils (x6) for Indirect Antiglobulin Test. 1 well/sample — 48 samples OR 3 wells/sample — 16 samples. | x6 | | | | | ✖

Incubation reagents (examples)
O_Typing Buffer | 96-deepwell plate for red cell dilution. 1 well/sample — 96 samples | x5
O_Rev. Typing Buffer | 96-well plate for plasma dilution for reverse typing. 1 well/sample — 96 samples | x5
O_IAT Buffer | 96-well plate for IAT testing. 1 well/sample — 96 samples | x5
O_IAT HD Buffer | 10 mL bottle for IAT; quantity sufficient for ~200 tests (50 µL/test) | x1
O_A1&B cells | 2x10 mL of 0.8% suspension of A1 & B cells for reverse typing; quantity sufficient for ~500 tests | x1
O_3xOcells | 3x10 mL of 0.8% suspension of 3 different O cells for IAT; quantity sufficient for ~200 tests | x1

Technical specifications

• Applications: ABO/D typing, serotyping, phenotyping (Rh/Kell), extended phenotyping, IAT
• Throughput: high-throughput batch processing; typical 4–6 wells per sample for complete characterization
• Foil format: 8-wells foils; up to 20 high-definition assays per well
• Automation modules: 2 pipetting arms, 3 centrifuges, 1 image acquisition module
• Reagents: compatible with standard reagents, buffers and protocols; ready-to-use reagents and controls
• Software: integrated sample/instrument/QC management and image interpretation (OMNYS_Analyser)
• Sustainability: reduced infectious waste and plastic compared with card gel technology
