Digital microscope U50s

inspectioncomparisonlaboratory

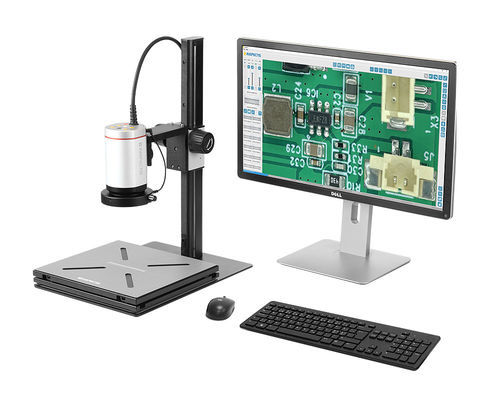

U50s 4k 60fps Digital Microscope System PackageVivid 4K Video at 60 fps and Low Latency.Complete package including award winner, state of the art Ultra U50s Digital Microscope with 50:1 Zoom Range, swift Auto Focus, Fine Focusing Track Stand, LED Ring light, large working area XY-Floating Board and powerful INSPECTIS© Pro Utility and Metrology Software.Breakthrough TechnologyIn addition to its high frame rate, U50s sensor provides higher sensitivity and higher dynamic range than previous 4K cameras. Industry-leading 4K60 signal processing with exceptional flicker and flare reduction for best image quality.Fast and AccurateFirst class F1.6 – 4.8 optics. Advanced high resolution motorised zoom lens with 7-blade aperture and fast auto-focus. 225 mm free working distance with 25:1 optical zoom and 2x digital zoom. Best choice for High Resolution Optical Inspection, Analysis, Quality Control, R&D, Metrology, Reporting and Documentation of objects up to 1730x on-screen magnification.ErgonomicFastReliableSuperiour Optics for Inspection of Fine DetailsHigh-resolution lens design of U50s maintains image clarity and resolution power whether you zoom in for high magnification or zoom out for a large field of view. Video’s high refresh rate maintains image coherence and stability, reduces motion blur, and provides smooth and dynamic images of especially fast-moving objects.Optimised for Accurate Inspection of Fast Moving Objects.4K 60fps Digital Microscope Powered by INSPECTIS©The system is powered by INSPECTIS© Pro software. Powerful yet easy-to-use live image view, capture, analysis, metrology and reporting software.INSPECTIS© Pro is pre-calibrated across entire zoom range of the U50s microscope and provides tools measurements, image overlays, digital graticule, comparison, video & audio recording, drawings, annotations, and reporting. INSPECTIS© provides direct access to camera and lens attributes like zoom, aperture size, shutter speed, contrast, sharpness, focus and colour balance.Upgradeable to INSPECTIS© ProX for maximum functionality.Winner of the 2025 New Product Introduction (NPI) AwardThe 18th annual NPI Awards recognize the U50s Digital Microscope as leading new product for electronics assembly.Evaluation was based on:Creativity and innovationCompatibility with existing technologyCost-effectivenessDesignExpected reliabilityFlexibilityExpected maintainability/reparabilityPerformanceUser-friendlinessSpeed/throughputFully Configurable Optical SystemInspectis 4K 60fps Advanced System can be further adapted to your application and has a wide range of accessories. Options included:Transmitted brightfield white illuminationIncident UV ring-light illumination+1, +2, 3, +5, +10,+28 or +56 diopter extra lensesPrecision XY-stage3m extended cableESD protected housingSelf-adjusting laser pointerHermetic sealed housingPrecise Camera and Lens ControlINSPECTIS© provides direct access to camera and lens attributes like Optical Zoom, Manual/Auto Focus, Aperture Size (Iris), Shutter Speed (Exposure time), Gain, Contrast, Sharpness, Clarity and Color balance to produce the best image quality adapted to the application.1 to 16 camera and lens configurations can be named and saved in memory for quick recall through the P1 to P16 hotkeys on the software.Robust and ReliableIndustry grade long lasting digital microscope in robust aluminium housing. Small form factor and excellent cable management thanks to its single compound cable design.Industrial-quality track stand with large size antistatic coated base and rack & pinion for focus and working distance adjustment of digital microscope.Industrial build quality inside and out. Designed and manufactured according to ISO 9001 and ISO 13485 standards.The Last Microscope You’ll Ever Need!State of the art 4K 60fps camera technology60 frame per second video with almost zero latencyHighly sensitive image sensor with wide dynamic rangeSuperior lens design with motorised zoom and fast auto focus25x optical zoom and 2x extra digital zoom with 3D noise reductionModular system fully adaptable to different applications and environmentsSingle cable design for clean installationIndustrial design robust, long lasting all-aluminium housingSmall form factor not obscuring the operator view or occupy the worktableFully compatible with a wide range of Inspectis accessories.Icon based INSPECTIS software with powerful video processing engineIncluded items when you order HD-116-KIT-ADVInspectis U50s, Ultra HD 2160p, 60fps Modular Digital Macroscope, x50 ZoomTrack stand, Large Base with focusing WD 35-410mm, ESD-Protected baseXY Floating Board with magnetic pegs (4x kit)RingLight White LED with detachable diffuser4K USB3.2 Gen 2×2 Capture Pro with INSPECTIS© Pro software and USB-COM cableAnnual Service and Support for INSPECTIS© Pro (one year)SpecificationsVideo Output4K 2160p, 60 frames per second, 8.4MpOptical System25:1 motorised zoom with auto focus and iris control, F1.6 – 4.8Digital Zoom2x with 3D noise reductionPixel Size (resolution)2.0 μm x 2.0 μmMagnification range2.9x to 151x with standard lens. Up to 1737x with +56 diopter lens on 28″ monitorField of View211mm at 1x zoom, 4.0mm at 50x zoom, 0.35mm at 50x with +56 diopter lensWorking distance185 – 225mm with standard lens. 18mm with +56 diopter lensI/O PortsHDMI2.0 video output, 5P MiniDin power input, 8P MiniDin for communication.Camera and lens control via top buttonsZoom, Auto-brightness level, Auto Focus on/off, White BalanceCamera and lens control via softwareZoom, Manual/Auto Focus, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Sharpness, Contrast, VE, White Balance, Clarity, FlipV, FlipH, NIR-mode, Memory Save/Recall (16 pcs)PC interfaceUSB3.2 Gen 2×2 and PCIe Gen2 x4SoftwareINSPECTIS© Pro, upgradeable to ProXPre-set memories16 save/recall memories with editable names and quick access buttonsImage / Video Capture format4K still pictures in JPG and PNG. 4K 60fps video recording in AVI with 4 selectable video compressionsImage / Video CaptureVia software. Foot-pedal (optional)IlluminationWhite LED Ring Light with detachable diffuser and electronic dimmerXY-stageFloating board X ± 160mm Y ± 145mm travel range, AntistaticStandTrack stand with rack & pinion z-movement 35 – 410mm working distance rangeStorage Environment-20° – +65°C, 20 – 95% RH, non-condensingOperating Environment-5 ° – +45°C, 20 – 95% RH, non-condensingSize, Weight510 x 400 x 295 mm, 10 kg.Optional accessoriesMacro Lens +5 Diopter, 67mm (Item no. HD-039): +5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.Polarisation filter set for RingLight, 67mm (Item no. HD-024-P-U): Polarising filter set consists of a polariser which is attached on front of the LED RingLight and an analyser which is screwed on the camera lens. For polarised light microscopy and for eliminating glare from highly reflective objects like solder joints.Upgrade to INSPECTIS© ProX Image Capture and Metrology software with Real-time Camera Control (Item no. -PX): Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides extra tools such as automatic/manual focus stacking, time lapse video recording, overlay assisted inspection, optical edge detection, DXF import/export/edit, drawing toolbox, PNG overlay, automatic alignment and rescaling of overlaid images.More accessories: A wide variety of accessories are available for INSPECTIS digital microscopes. Find more accessories here.Characteristics / Technical SpecificationsUltra HD 2160p, 60fps Modular Digital Macroscope50:1 Zoom RangeAuto Focus, Fine Focusing Track StandLED Ring light with detachable diffuserLarge working area XY-Floating BoardINSPECTIS© Pro Utility and Metrology SoftwareUpgradeable to ProX softwareRobust aluminium housingIndustrial build quality (ISO 9001, ISO 13485)Single cable designWide range of optional accessories
