Digital microscope HD-016-KIT-LWD
laboratoryfor animal researchmedical

Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical - image - 2
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical - image - 3
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical - image - 4
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical - image - 5
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical - image - 6
Digital microscope - HD-016-KIT-LWD - Inspectis - laboratory / for animal research / medical - image - 7
Add to favorites
Compare this product


Characteristics

Type
digital
Applications
laboratory, for animal research, medical, for teaching, inspection, veterinary laboratory, multifunctional, for forensics, for dental laboratories, soldering
Observation technique
dark field, polarized
Configuration
tabletop
Light source
with LED light, white light, UV
Options and accessories
with color camera, with pointing device, zoom
Other characteristics
ultra-high resolution, all-in-one
Magnification

Min.: 1 unit

Max.: 27 unit

Weight

9.1 kg
(20.1 lb)

Length

640 mm
(25.2 in)

Width

400 mm
(15.7 in)

Height

429 mm
(16.9 in)

Description

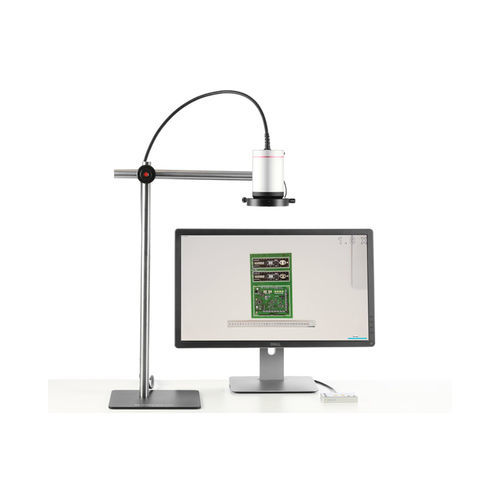

Inspectis large working distance U30s-LWD is a premium all-in-one Ultra High Definition 8.3 megapixel optical inspection system with 30:1 optical zoom range, fast auto focus and extended 550 mm working distance. Packed and ready-to-use with LWD Boom Stand, Advanced Remote Control and Ring Light. Designed for Ergonomic Use Through its unique ergonomic design and large free working distance, Inspectis U30s-WD500 system provides relief to eyes, neck and shoulders For Inspection of Large Objects Besides 550mm working distance, large field-of-view of the U30s-LWD system allows optical inspection of up to 700 mm wide objects! Free View to the Display The extended 310-550mm working distance range provides clear and clutter free bench space for working on objects that you can observe on the monitor right on front of you. You sit comfortably in a good working position and carry out your optical inspection tasks efficiently. Remote Controller for Ease of Use System is delivered with an advanced external remote control for ease of use. The Advanced Remote Control allows the excellence of the imaging system to be exploited further and additional useful inspection aids to be selected. To further simplify operations, selected controller functions can be controlled by a foot pedal. Ergonomic Inspection of PCBs Thanks to its mega-pixel optics, 8.3 mega pixel image sensor, and brilliant optics, U30s LWD provides an excellent image of inspecting object, especially solder joints on electronic components and assemblies PCB with minimum glare and reflections.
