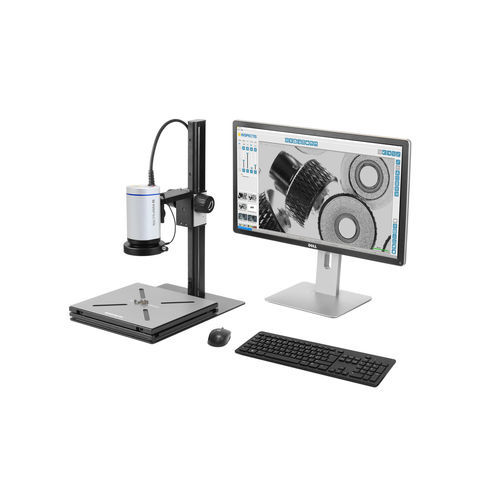

Digital video microscope F40s

inspectionLEDUV

Overview
The Inspectis F40s is a modular Full HD (1080p/60) digital microscope designed for industrial inspection, quality control, metrology and documentation. It integrates a 40:1 motorised megapixel zoom with fast centre-spot autofocus, an upgraded image sensor and on-board camera/lens controls in an industrial aluminium housing with UNC 1/4-20" mount and organised cable management for easy integration into stands and production lines.

Key highlights

• Full HD 1080p/60 video output with advanced signal processing to minimise motion blur and ensure smooth imaging.
• 40:1 motorised megapixel zoom lens with autofocus, iris control and pre-calibrated optics.
• On-board controls for zoom, brightness, AF on/off and white balance; optional remote consoles with multiple memory presets.
• Modular design enabling configurable mounts, stands, illuminations, lenses and SDK for software integration.
• Suited for live inspection of moving objects, in-line inspection and SMT/production line integration.

Included items (when ordering HD-115)

• Inspectis F40s, FHD 1080/60p modular digital macroscope with x40 zoom and built-in controls.
• Power supply.
• Instruction manual and documentation.
• Two years new product warranty.

Specifications

• Video output: Full HD 1080p @ 60 fps
• Image sensor: 1920 x 1080 (16:9), 1.62 μm pixel size
• I/O: HDMI out, 5P MiniDin power, 8P MiniDin communication
• On-board control: Zoom, Brightness, Auto Focus on/off, White Balance
• Remote control (optional): console and software features (presets, overlays, quality modes, memory save/recall)
• Lens: 40:1 motorised megapixel zoom with autofocus and iris control
• Illumination (optional): LED ring lights (white/UV), spot LEDs, transmitted backlight
• Mount: UNC 1/4"–20
• Operating environment: -5° to +45°C, 20–95% RH (non-condensing)
• Storage environment: -20° to +60°C, 20–95% RH (non-condensing)
• Size & weight: approx. D86.5 x L160 mm (exclusive cable), 0.9 kg
• Software & integration: INSPECTIS© software family, SDK for third-party integration

Applications & Integration
The F40s supports optical inspection, metrology and documentation at a wide range of on-screen magnifications (typical ~2.5x–100x on a 28" monitor). With diopter macro lenses it can achieve higher on-screen magnifications (approx. 1414x, 0.43 mm field of view). Its compact single-cable industrial design enables in-line use and easy adaptation to production lines with Inspectis XY-travel stands. Remote control consoles and INSPECTIS© software options (Basics, Pro, ProX, OAI) extend measurement, capture and overlay capabilities.

Technical specifications

• Model: F40s
• Video output: Full HD 1080p @ 60 fps
• Sensor: 1920 x 1080, 16:9
• Optics: 40:1 motorised zoom with autofocus and iris control
• On-board controls: Zoom, brightness, AF on/off, white balance
• I/O: HDMI, 5P MiniDin power, 8P MiniDin communication
• Mount: UNC 1/4"–20
• Illumination options: ring (white/UV), spot, transmitted
• Operating temp/humidity: -5° to +45°C, 20–95% RH
• Storage temp/humidity: -20° to +60°C, 20–95% RH
• Weight/size: ~0.9 kg; D86.5 x L160 mm
