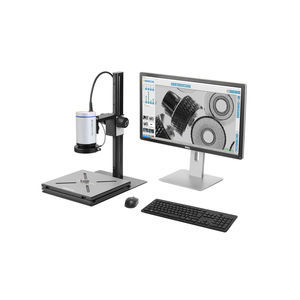

Optical video microscope U50s

digitalinspectionnear-infrared

Overview
A modular 4K60 digital inspection microscope designed for integration into industrial and laboratory imaging systems. On-board camera and lens controls, SDK for third-party integration and compatibility with a broad range of Inspectis stands, lenses, illumination options and INSPECTIS© software variants.

Key features

• 4K 2160p video output at 60 fps (Ultra HD)
• Sensitive image sensor with wide dynamic range and accurate colour reproduction
• 25:1 motorised optical zoom with fast centre-spot autofocus and 7-blade iris (F1.6–4.8)
• 2x digital zoom with 3D noise reduction (combined effective zoom up to 50:1)
• On-board controls for zoom, focus, iris, brightness and white balance
• SDK included for real-time camera control and system integration
• Compact aluminium housing for industrial use and system mounting

Optics & Performance
The system delivers low-latency 4K imagery with signal processing to reduce flicker and flare. Standard optics provide 225 mm free working distance and a field of view from 211 mm (1x) down to 4.0 mm (50x). An extended LWD option offers up to 500 mm working distance. On-screen magnification ranges approximately 2.9x–151x with the standard lens and can reach up to 1737x with high-diopter close-up lenses.

Controls, Software & Integration
Camera and lens adjustments via top-mounted on-board buttons; optional remote control consoles extend functionality (zoom, iris, manual/auto focus, white balance, overlays, memory recalls). INSPECTIS© software options (Basics, Pro, ProX, OAI) support capture, metrology and analysis. SDK provided for third-party system integration.

Included items (HD-116)

• Inspectis U50s Ultra HD 2160p 60fps modular inspection macroscope, x50 Zoom (25:1 optical + 2x digital)
• Power supply
• Instruction manual and documentation
• Two years new product warranty

Highlights

• 4K60 video with very low latency suitable for fast-moving inspection targets
• Motorised zoom with rapid centre-spot autofocus
• Single-cable design for simplified installation and stable signal
• Compatible with the Inspectis accessory range
• Optimised optics for inspection of small and moving components (stents, pipettes, watches, etc.)

Downloads & Media
Manufacturer-provided brochure, technical and system requirement PDFs and product catalogue. Product demonstration video available.

Technical specifications

• Video output: 4K 2160p, 60 fps (Ultra HD)
• Sensor: ~8.3–8.4 MP effective
• Optical zoom: 25:1 motorised with autofocus and iris control (F1.6–4.8)
• Digital zoom: 2x with 3D noise reduction (combined up to 50:1 effective)
• Magnification (28" monitor): ~2.9x–151x (standard lens); up to 1737x with +56 diopter lens
• Field of view: 211 mm (1x) to 4.0 mm (50x); 0.35 mm at 50x with +56 diopter
• Working distance: 225 mm (standard); LWD option up to 500 mm; 18 mm with +56 diopter; general range 185–225 mm
• I/O: HDMI 2.0 video output; 5P MiniDin power input; 8P MiniDin communication
• Controls: Zoom, Iris (F#), Auto Brightness, Manual/Auto Focus, White Balance (top buttons and remote options)
• Software controls: Zoom, Focus, Iris, Shutter, Brightness, Gain, Sharpness, Contrast, VE, White Balance, Clarity, FlipV/FlipH, NIR-mode, Memory Save/Recall (16)
• External remotes: Zoom, Iris, Brightness, Focus, White Balance, Picture Quality Mode, Overlays, Image Rotate/Freeze, Memory, Foot-switch
• Illumination: White LED ringlight, single/double-spot LED with gooseneck, bright-field transmitted backlight, UV LED
• Storage/Operating: Storage -20° to +60°C, 20–95% RH non-condensing; Operating -5° to +40°C, 20–95% RH non-condensing
• Size & Weight: Ø86.5 x 160 mm (excl. cable); ~0.88 kg (excl. cable and stand)
