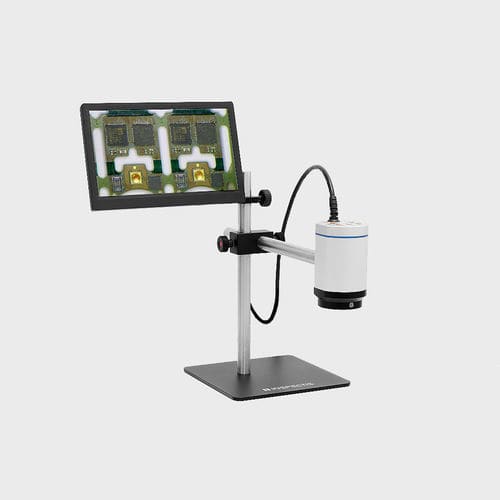

Digital microscope F35s

opticallaboratoryinspection

Modular Digital Microscope with 35:1 motorised optical zoom, swift centre-spot auto focus, and easy-to-access on-board lens & camera controls. Standard UNC 1/4-20″ mount for assembly on most standard stands. Endlessly Versatile Modular design of the F35s in industrial grade aluminium housing and excellent cable management allows easy configuration of your optical inspection system with a wide range of stands, mounts, illuminations and control consoles according to your needs. Crisp Video with High Frame Rate Inspectis F35s digital microscope with its excellent image quality, high contrast, high frame rate and true colours is designed for optical inspection, quality control, Metrology, Reporting and Documentation of objects up to 720x magnification. Optimized for Optical Inspection of Moving Objects The system’s standard 35:1 zoom optics produces ~ 1.7 – 61.4x magnification on 24” monitor. With extra dioptre macro lenses attached, up to 720x magnification (24″ monitor) equal to 0.72 (H) x 0.41 (V) mm field of view and 362 lp/mm resolution power can be achieved. Thanks to its 60fps video and quick auto-focus it is the best choice for live inspection of the moving objects. Precise Camera and Lens Control On-board controls of U30s provides direct access to camera and lens attributes like optical zoom, aperture size, focus and colour balance. SDK is supplied for integration and control of the the digitial microscopes in 3:th party systems. Remote Control Consoles A wide range of remote controls are available for further adjustments of camera and lens attributes,
