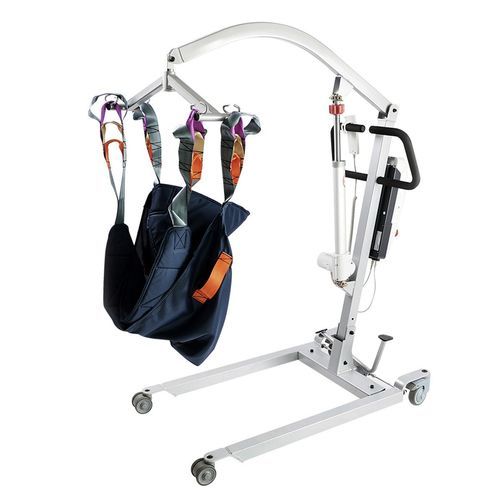

Electric patient floor lift Y401

battery-operatedon castersportable

Overview
INTCO Medical Patient Lift Y401 is an electric mobile patient lift intended for assisted transfers in care environments. It is designed for operation by trained caregivers and provides adjustable lifting height, a compact chassis, and powered lifting with a rechargeable battery. Select the model according to user profile and applicable local safety and procurement requirements.

Features

• Frame: Steel with powder coating
• Chassis length: 1070 mm
• Chassis width: 600–800 mm
• Lifting height: 830–1850 mm
• Handle height: 1000 mm
• Caster height: 90 mm
• Motor: DC 24V 8000N
• Battery: DC 24V 5Ah, rechargeable — approx. 60 lifts per full charge
• Charger: 24V-1A
• Charging time: 6 hours
• Front caster: 3" solid tire (plastic wheel optional)
• Rear caster: 4" solid tire with locking (plastic wheel optional)
• Maximum user weight: 150 kg
• Alternatives: Purpose-designed sling options
• Package (carton size): 1260 × 630 × 350 mm
• Gross/Net weight: 51 / 43 kg

Product Parameters

• Chassis length (mm): 1070
• Chassis width (mm): 600–800
• Lifting height (mm): 830–1850
• Handle height (mm): 1000
• Caster height (mm): 90
• Motor: DC 24V 8000N
• Charger: 24V-1A
• Front caster spec.: 3" solid tire
• Rear caster spec.: 4" solid tire with locking
• Max. user weight (kg): 150
• Gross/Net weight (kg): 51 / 43
• Carton size (mm): 1260 × 630 × 350

Notes

• Battery performance: approximately 60 lifts per full charge (DC 24V 5Ah).
• Charging time: approximately 6 hours using the 24V-1A charger.
• Intended for use by trained caregivers in care settings; verify suitability against local safety standards and procurement requirements.

Technical specifications

• Model: Y401
• Frame material: Steel with powder coating
• Chassis length: 1070 mm
• Chassis width: 600–800 mm
• Lifting height: 830–1850 mm
• Handle height: 1000 mm
• Caster height: 90 mm
• Motor: DC 24V 8000N
• Battery: DC 24V 5Ah (rechargeable), ~60 lifts per charge
• Charger: 24V-1A
• Charging time: 6 hours
• Front caster: 3" solid tire (plastic optional)
• Rear caster: 4" solid tire with locking (plastic optional)
• Maximum user weight: 150 kg
• Package size (carton): 1260 × 630 × 350 mm
• Gross/Net weight: 51 / 43 kg
