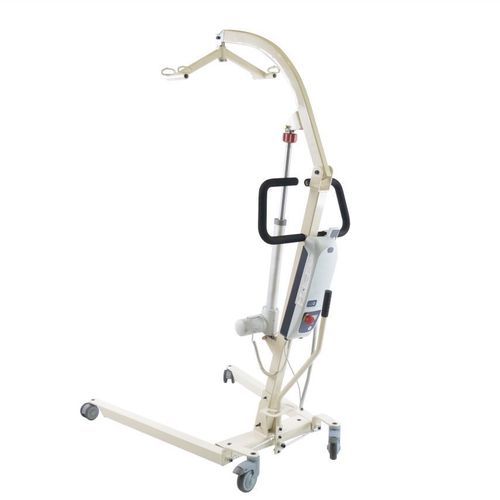

Electric patient lift Y407

on castersfor stretcherslifting

Product overview
Electric patient lift Y407 designed to assist transfers between bed, chair and stretcher. A hand lever controls the base opening and closing to simplify positioning. Double rear castors include a safety lock for secure parking. The hanger rotates 360° to facilitate sling attachment. Frame: steel with powder coating. Motor: DC 24V, 8000N.

Key features

• Hand lever for opening/closing the base to aid patient positioning
• Double rear wheels with safety lock
• 360° rotating hanger for easy sling access
• Steel frame with powder coating
• Electric drive: DC 24V, 8000N

Technical specifications

• Model: Y407
• Frame material: Steel, powder coating
• Chassis length: 1200 mm
• Chassis width: 600–1065 mm (adjustable)
• Lifting height range: 840–1870 mm
• Handle height: 1170 mm
• Castor height: 115 mm
• Motor: DC 24V, 8000N
• Charger: 24V-1A
• Package dimensions: 1240 × 630 × 360 mm
• Gross/Net weight: 48 / 40 KGS

Product parameters (table)
Frame | Chassis Length (mm) | Chassis Width (mm) | Lifting Height (mm) | Handle Height (mm) | Castor Height (mm) | Motor | Charger | Package (mm) | G./N.W.
Steel, powder coating | 1200 | 600-1065 | 840-1870 | 1170 | 115 | DC 24V 8000N | 24V-1A | 1240*630*360 | 48/40KGS

Applications & maintenance

• Intended for patient transfers in clinical and care environments — verify sling compatibility before use
• Charger 24V-1A for battery recharging; follow manufacturer charging instructions
• Regularly inspect castors, locking devices and frame; perform maintenance according to local regulations
