Battery-operated patient lift Y402

electricon castersfolding

Overview

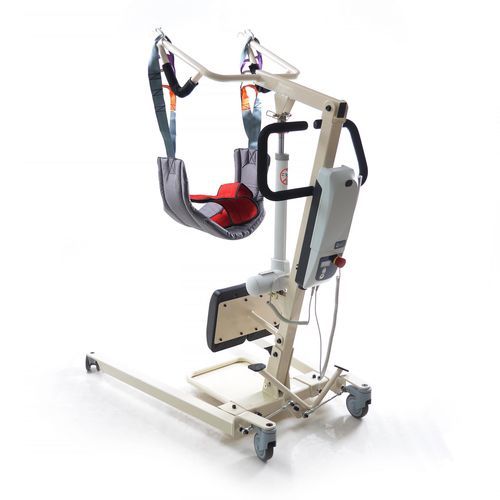

Patient lift Y402 by INTCO Medical
DC 24V 8000N motor; foldable, intended for home use.

Summary
The Y402 is designed for care environments where trained caregivers require assisted transfer equipment for routine patient handling. Verify product details against the intended user profile, applicable local safety requirements and procurement standards before purchase. For B2B buyers, selection is best guided by the use scenario, seating/size requirements and expected after-sales services.

Key dimensions and features

• Chassis length: 1070 mm
• Chassis width: 600-800 mm
• Lifting height: 1295-1960 mm
• Handle height: 1000 mm
• Castor height: 90 mm
• Motor: DC 24V 8000N
• Charger: 24V-1A
• Max. user weight: 150 kg

Product Parameters

• Motor: DC 24V 8000N
• Charger: 24V-1A
• Front caster spec.: 3"
• Rear caster spec.: 4"
• Max. user weight (kg): 150
• Gross/Net weight (kg): 56.5/48.5
• Carton size (mm): 1240 x 630 x 350

Technical specifications

• Model: Y402
• Motor: DC 24V 8000N
• Charger: 24V-1A
• Chassis length: 1070 mm
• Chassis width: 600-800 mm
• Lifting height: 1295-1960 mm
• Handle height: 1000 mm
• Castor height: 90 mm
• Front caster: 3"
• Rear caster: 4"
• Max. user weight: 150 kg
• Gross/Net weight: 56.5/48.5 kg
• Carton size: 1240 x 630 x 350 mm
