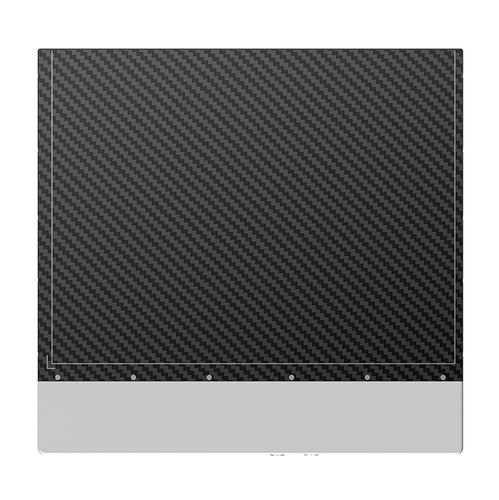

Mammography flat panel detector Mammo 1012P

10 x 12

Mammo 1012P is new generation, high-performance FPD developed with innovative CMOS sensor technology. It has an active area of 10×12-inch with a 49.5 μm pixel pitch. A tapered enclosure profile with a super slim edge extends the field-of-view for improved chest wall coverage. The Mammo 1012P is designed for both full field digital mammography and digital tomosynthesis applications. Features Specially designed for FFDM and DBT applications Extremely low dose, while high SNR and CNR Less than 0.5% first frame lag Switchable gain settings for variable sensitivity 10G Ethernet interface Detector Technology CMOS Scintillator Csl Pixel Matrix 4681 x5905 Pixel Pitch (pm) 49.5 Readout Time (ms) 127 AD Conversion (bit) 16 Dynamic Range (dB) 73 Chest Wall Distance (mm) <3 Trigger Mode Prep Data Interface 10GigE Dimensions (mm3) 315 x 300 x 23 Weight (kg) 2 Power Dissipation (W) <25 Operating Temperature (°C) 10-40 Storage & Transport Temperature with Package (°C) -20 〜55 Operating Humidity (% RH) (Non-Condensing) 10 〜90 Storage & Transport Humidity with Package (% RH) (Non -10 〜95
