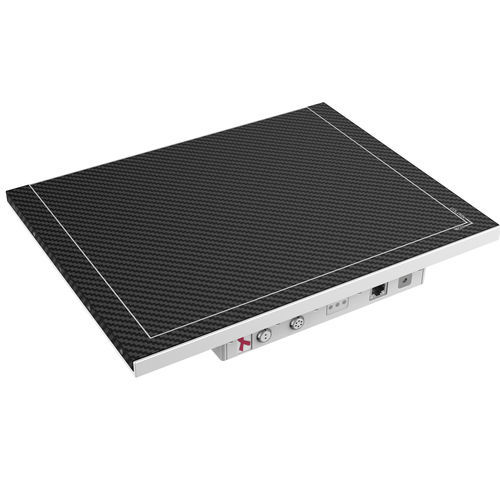

Mammography flat panel detector Mammo 1012X

portablewireless10 x 12

Product overview
Mammo 1012X is a next-generation, high-performance 10×12-inch dynamic amorphous silicon (a-Si) flat panel detector designed for mammography systems. It provides a 238 mm × 293 mm imaging area with a narrow chest wall distance, wide dynamic range and high signal-to-noise ratio. Switchable gain settings enable variable sensitivity. The detector supports dynamic imaging up to 6 fps at full resolution and is intended for FFDM, DBT and biopsy mammography workflows.

Key features

• 238 mm × 293 mm imaging area
• 85 μm pixel pitch with 16-bit ADC
• Low first-frame lag: 1.5%
• Wide dynamic range for improved exposure latitude
• High signal-to-noise ratio for enhanced image detail
• Supports 6 fps continuous dynamic imaging at full resolution
• Switchable gain settings for variable sensitivity
• Compact design with narrow chest wall distance for easy integration

Clinical applications

• Full-field digital mammography (FFDM)
• Digital breast tomosynthesis (DBT)
• Biopsy mammography procedures

Technical specifications

• Model: Mammo 1012X
• Detector type: Dynamic amorphous silicon (a-Si) flat panel detector
• Imaging area: 238 mm × 293 mm
• Pixel pitch: 85 μm
• ADC: 16-bit
• First frame lag: 1.5%
• Dynamic range: Wide dynamic range
• Signal-to-noise ratio: High SNR for superior image quality
• Frame rate: Supports dynamic imaging up to 6 frames per second at full resolution (6 fps continuous)
• Gain: Switchable gain settings for variable sensitivity
• Design: Compact design with narrow chest wall distance for system integration
• Intended use: Full-field digital mammography (FFDM), digital breast tomosynthesis (DBT), biopsy mammography
