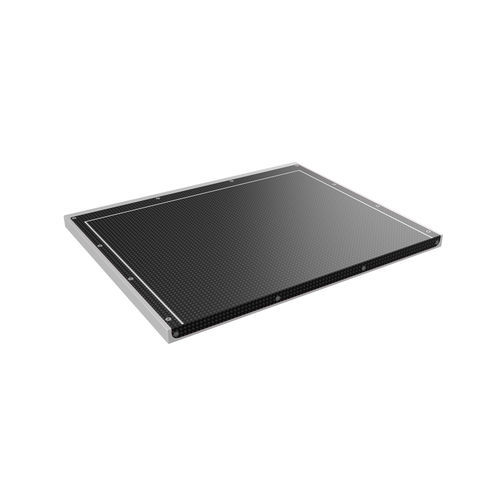

Mammography flat panel detector Mammo 1012C

portablewireless10 x 12

Description
Mammo 1012C is a cassette-sized flat panel detector designed for digital mammography. It features a 10×12 in active area, 85 μm pixel pitch, an amorphous silicon (a‑Si) sensor and a direct-deposition CsI scintillator. The detector supports low-power automatic exposure detection (AED) and is compatible with the automatic exposure control (AEC) of existing X‑ray mammography systems. Its compact form factor and Gigabit Ethernet interface simplify integration into new FFDM systems and retrofit projects.

Features

• Cassette size conforming to ISO 4090
• 85 μm pixel pitch with 16-bit ADC
• Switchable gain settings for variable sensitivity
• Gigabit Ethernet data transfer
• Compact design for easy integration
• Low-power, precise AED; compatible with existing system AEC

Technical specifications

• Model: Mammo 1012C
• Detector type: Mammographic flat panel detector (a‑Si)
• Active area: 10×12 in
• Pixel pitch: 85 μm
• Detector sensor: Amorphous silicon (a‑Si)
• Scintillator: Direct-deposition CsI
• ADC: 16‑bit
• Exposure detection: Low‑power AED; compatible with AEC
• Form factor: Cassette-sized, conforms to ISO 4090
• Gain: Switchable gain settings for variable sensitivity
• Data interface: Gigabit Ethernet
• Intended use: Integration into new and retrofit FFDM systems
