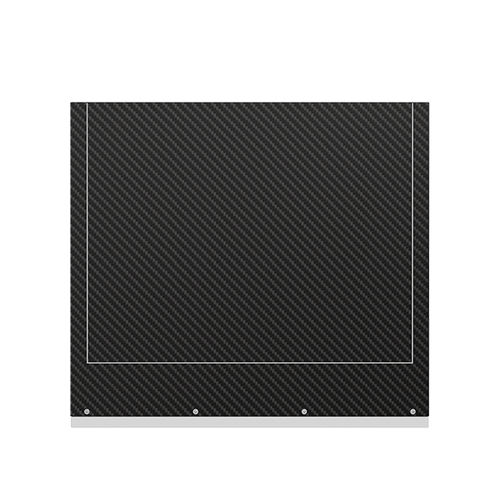

Mammography flat panel detector Mammo 1012F

10 x 12

It has a large 239 mm × 300 mm imaging area, and a narrow, 3 mm, chest wall distance. The detector provides a large dynamic range, high signal-to-noise ratio, reliable data transmission, and low power consumption. The Mammo 1012F is designed for FFDM applications. Features 85 μm pixel pitch with 16-bit ADC Low 1st frame lag of 1.5% Wide dynamic range High signal-to-noise ratio, excellent image quality Lower power consumption Reliable data interface Detector Technology Amorphous Silicon Scintillator Csl Active Area (mm) 239x300 Pixel Matrix 2816x 3528 Pixel Pitch (pm) 85 Maximum Frame Rate (fps) - N.A AD Conversion (bit) 16 Dynamic Range (dB) >76 Chest Wall Distance (mm) <3 Trigger Mode Outer / Software / Prep Data Interface GigE Dimensions (mm3) -334 x 300 x 35 Weight (kg) 4 Power Dissipation (W) 18 Operating Temperature (°C) 10-40 Storage & Transport Temperature with Package (°C) -10-55 Operating Humidity (% RH) (Non-Condensing) 10-90 Storage & Transport Humidity with Package (% RH) (Non-Condensing) 10 〜95
